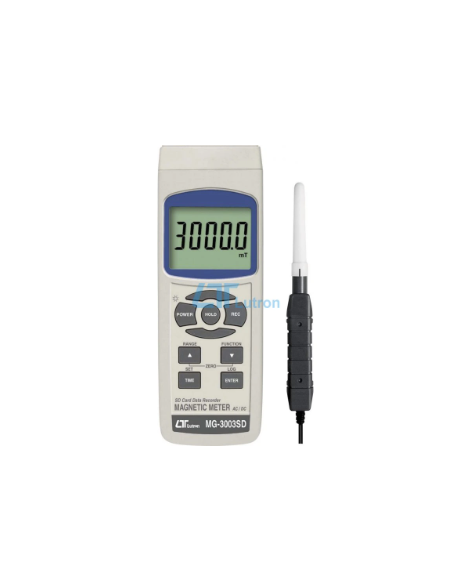

LUTRON MG-3003SD Magnetic Field Meter

Circuit: LSI microprocessor circuit

Display: LCD, size 52mm x 38mm

Measurement Functions:

mT (milli Tesla)

G (Gauss)

DC Measurement Range:

300.00 mT x 0.01mT

3,000.0 mT x 0.1 mT

3,000.0 G x 0.1G

30,000 G x 1G

AC Measurement Range:

150.00 mT x 0.01mT

1,500.0 mT x 0.1 mT

1,500.0 G x 0.1G

15,000 G x 1G

Sensor: Hall sensor

Frequency Response: AC measurement: 50 Hz / 60Hz

Temperature Compensation: Uses a temperature probe for automatic temperature compensation

Measurement Direction: Single axis

Data Logging Time:

Automatic: 1 second ~ 8 hours 59 minutes 59 seconds

Manual: Press the button to save

Supported Memory Card: 1GB ~ 16GB

Hold Function: Hold the value

Storage Function: (Max & Min values)

Sampling Time: Approximately 1 second

Data Output: Communication with computer via RS232 and USB interfaces

Operating Temperature: 0 ~ 50 °C

Operating Humidity: Less than 85 %RH

Power Supply: 1.5V DC x 6 batteries or 9V DC adapter (optional)

Weight: 385g

Dimensions:

Meter: 177 x 68 x 45 mm

Probe: 198 x 25 x 19 mm
