MADE JUPITER+ Low & Medium Voltage Dead Cables Identifier

JUPITER+ allows :

- Identification of de-energized cables

- Identify phases in short-circuit mode and open circuit mode

- Continuity in short circuit mode and open circuit mode

- Low voltage and medium voltage de-energized cables and feeders identifier

- De-energized three phase cable identifier and phaser.

- Dead low or medium voltage cable identifier

USE PRINCIPLE

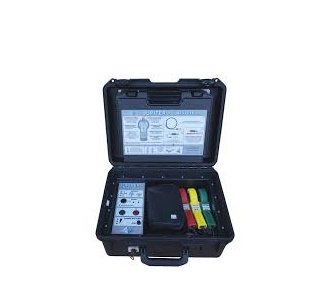

JUPITER+ consists of a transmitter and a Receiver, both can be used on the electric network, de-energized and earthed. The transmitter must be connected in a substation, on a MV cell or a LV feeder, using the 3 current clamps connected to each phase, excluding the outer sheath. The receiver allows cable pre-identifying, continuity checking and phase identifying in open circuit or short circuit modes.

TECHNICAL CHARACTERISTICS

TRANSMITTER

– Lead battery 12 V – 7.8 Ah

– Maximum autonomy : 10 h

– Can run on mains supply on 230 VAC

– 490 x 390 x 230 mm

– IP 62

RECEIVER

– 2 9 V PP3 batteries

– Maximum autonomy: 2000 measurements

– 380 x 290 x 70 mm

– IP 65
