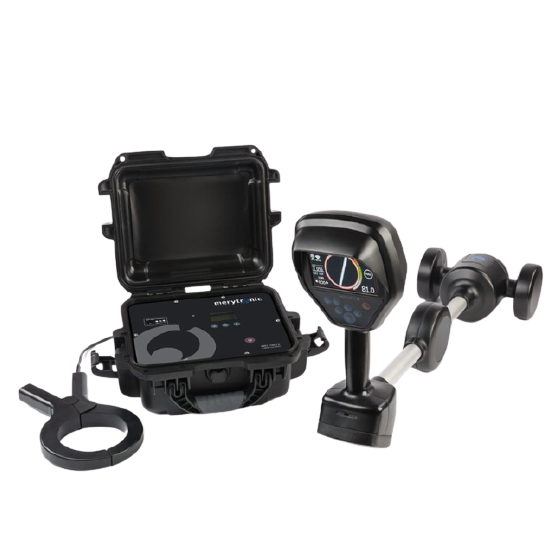

MADE MRT-700 Underground Cable And Pipe Locator (10W)

- 7 sensors

- 2D LCD display

- Excellent locating precision

- Automatic current direction

- High accuracy and definition

- Easy drive (intuitive performance

TECHNICAL CHARACTERISTICS

RECEIVER

- 4 actives tracing frequencies

- Frequencies : 2 sondes 8 and 33 kHz

- Passives frequencies

- Readind depth (cm) and current (mA) at the same time

- 50 Hz presence of electric network

- Automatic or manual gain level

- Compass

- Differents detection modes

- Signal power

- Bluetooth connection

- Actual depth display (5 % of precision at 3 m)

- Autonomy : 10 h

- Performance : 10 km

- IP54

- Temperature range : -20°C + 55°C

- Weight : 1,5 kg

GENERATOR 10W

- Power : 10 W

- Power : rechargeable battery Li-Ion

- Autonomy : > 10 h max power

- Weight : 3,1 kg

- Connection type : induction, direct connection, clamp

- Current display

- Available frequencies : current direction, 640 Hz, 8 kHz, 32 kHz

OPTIONS

- Tracking cable

- Fault finding

- KLM export (Android and Apple application)

- Accessories on request
