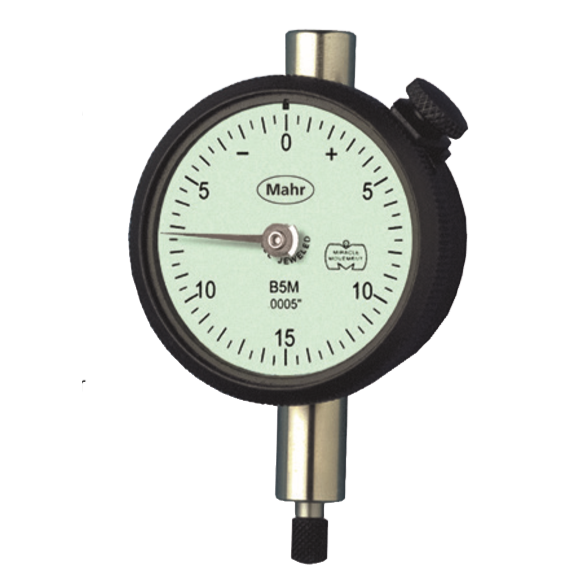

Product type: B5M-RC
Measuring span: .075”
Graduation value: .0005"
Type of dial face: 0-30
Rev. counter: yes
Range per rev.: .030"
Error limit: ±.0005”
Standard: ANSI
ANSI/AGD group: 1
Dial color: Green
FEATURES
• Unit construction and removable movement save repair/cleaning time and maintenance
• Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear
• Jeweled bearings resist friction, add to longer indicator life
• Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error
• Soft tinted dials (green - inch / yellow - metric) minimize eye strain
• Special steel alloy
• Balanced dial hand affords no shift, precise reading
• Controlled rack and pinion mesh eliminates slope for precise response and reading
• Smooth adjusting bezels for easy setup
• Positive pressure pull back spring requires less maintenance
• Compliance with ANSI/AGD dimensional and accuracy specifications
• These indicators are normally furnished with continuous dial (with R.C.) or + on right balance dial (w/o R.C.), lug back and .18” by .250” long contact
• Optional Dials: balanced dial with + on left; continuous clockwise; continuous counterclockwise (Order by part number and specify dial style desired)
• For other dial styles or special requirements - call Mahr
