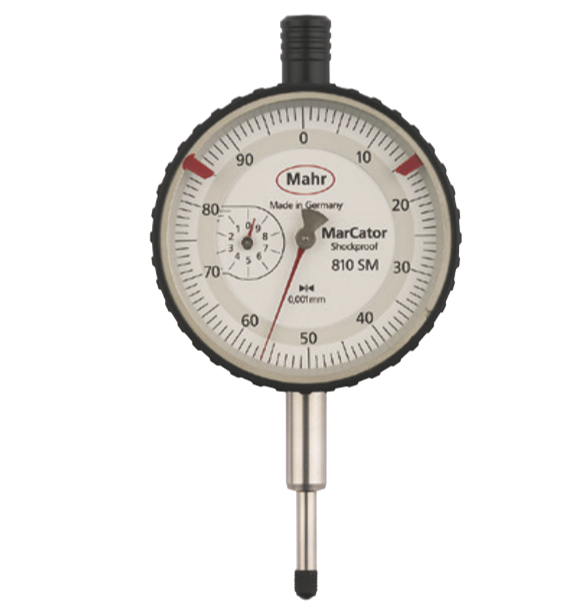

Product type 810 SM
Measuring span: 1mm
Graduation value: 0.001mm
Type of dial face: 0-100
Range per rev.: 0.1mm
Error limit: 4µm
Error limit, 1 revolution: 3µm
Error limit, 1/2 revolution: 2µm
Error limit, 1/10 revolution: 1µm
Repeatability fw: 1.5µm
Hysteresis fu: 1.5µm
Overtravel: 4mm
Measuring force incoming measuring pin N: 1.3-1.8
Standard: factory
Shockproof movement: yes
Lifting protection cap: yes
Package contains: case

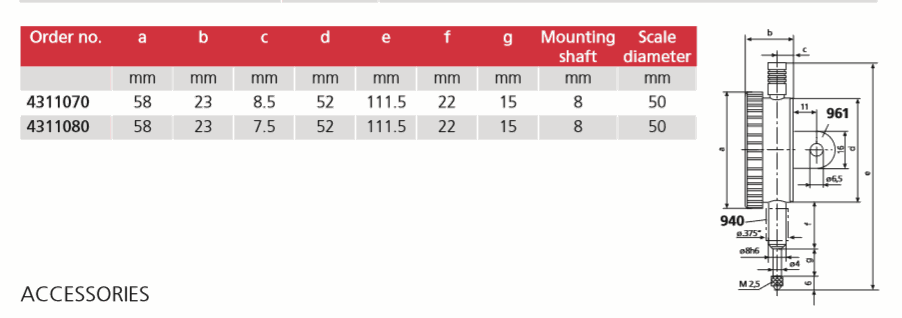

Accessories:
Adapter bush (.375” / 8 mm), type 940
Splash proof cap (58 mm)
Lug back, vertical, for 803, type 966
Lug back, horizontal, for 803, type 967
