Measuring span: 40 mm

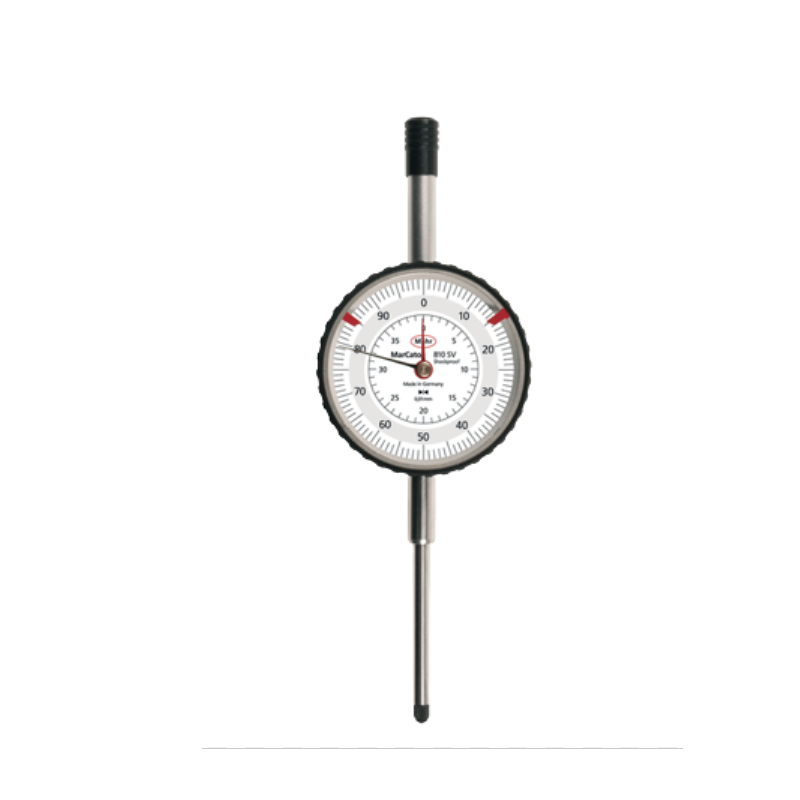

Product type: 810SV
Graduation value: 0.01mm
Standard: Factory standard
Type of dial face: 0-100
Range per rev.: 1 mm
Error limit measuring range: 25 µm
Error limit 1 revolution: 15 µm
Error limit 1/2 revolution: 10 µm
Error limit 1/10 revolution: 5 µm
Measuring value hysteresis fu: 6 µm
Repeatability fw: 3 µm
Overtravel: 0.1 mm
Scale diameter: 50 mm
Dial color: White
Dimensions: a 58 mm | b 24.2 mm | c 8.7 mm | d 52 mm | e 169 mm | f 22 mm | g 45 mm
