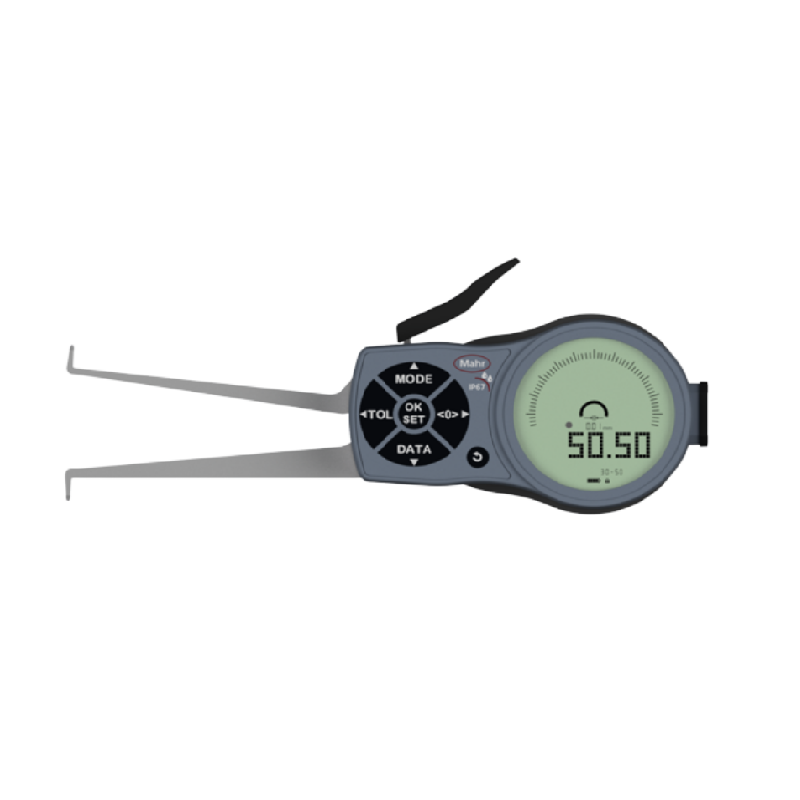

Product type: 838 EI
Measuring range: 30 - 50 mm
Application range: 30 - 50 mm
Error limit: 0.03 mm
Repeatability: 0.01 mm
Measuring force: 1.1 - 1.6 N

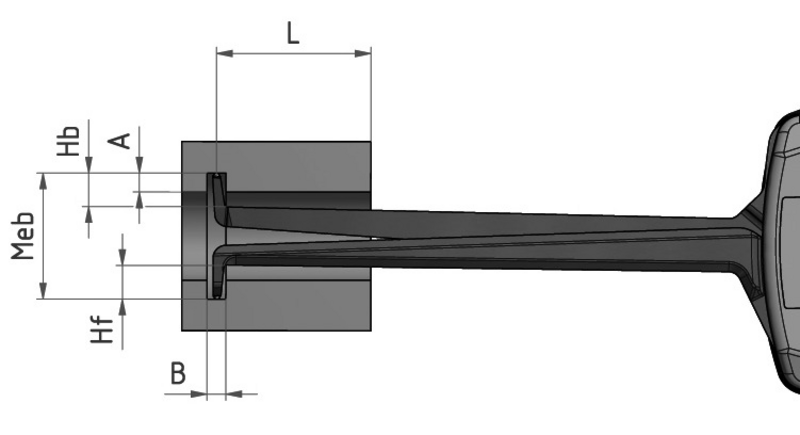

Measuring depth: 85 mm
Length of moving measuring contact: 7.3 mm
Groove depth: 7 mm
Length of fixed measuring contact: 7.3 mm
Groove width: 1.2 mm
Measuring contact ball diameter: 1 mm
