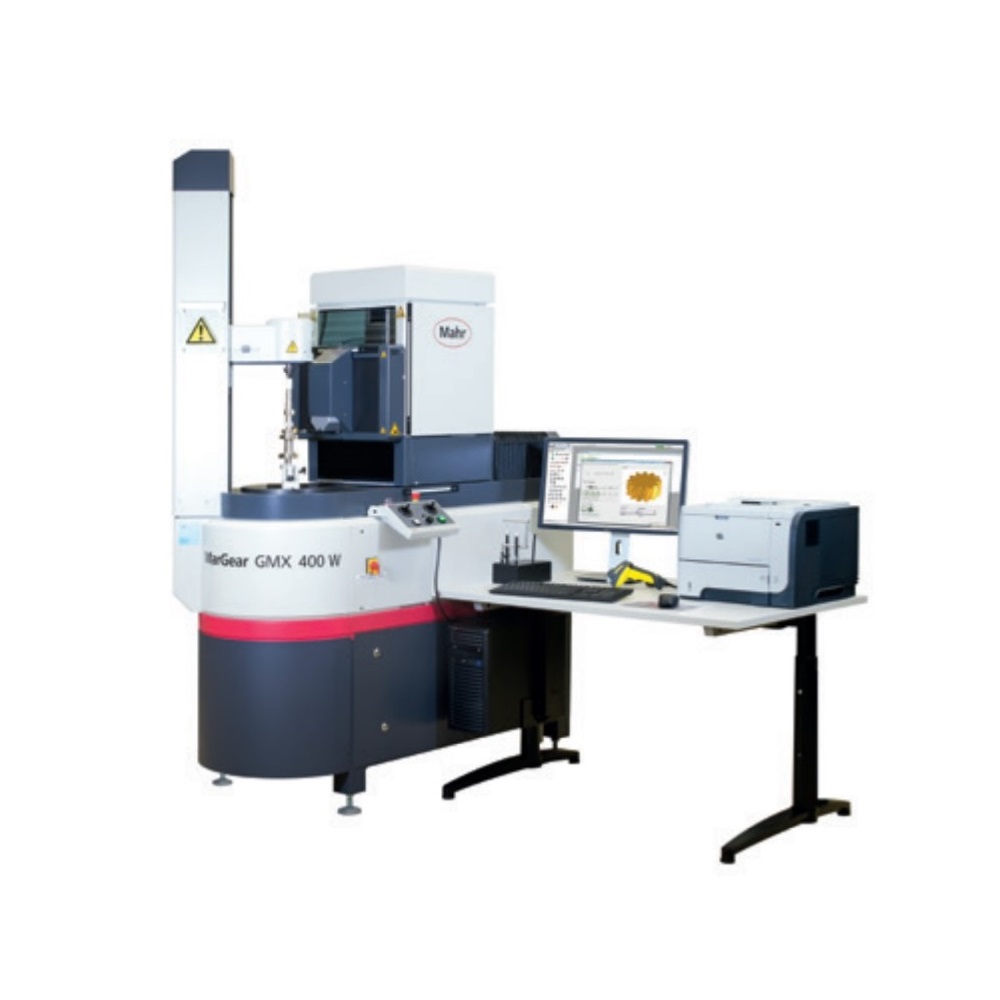

Max. workpiece weight [kg]: 60 (80 on request)
Mass [kg]: 760
Accuracy: Accuracy class I for gear measurements in accordance with VDI/VDE 2612/2613 Group 1 at 20°C ± 2°C
Axial runout deviation (µm+µm/mm measuring radius): 0.11 µm + 0.0008 µm/mm
Radial runout deviation (µm in table height): ≤ 0.11 µm
Height (mm): 1920 mm
Width (mm):621 mm
Measuring path Z (mm): 320
Measuring path Y (mm): 200
Diameter max.* [mm]: 400
Distance between peaks [mm]:2 ... 700 mm
Length (mm): 1520 mm
Measuring path X (mm): 200
Options:
• Active damping system
• Data Matrix Scanner
ACCESSORIES
• Data matrix scanner
• Range of chucks for “clamping on the fly” and
measurements on “virtually” aligned workpieces
(wobble coordinate system)
• Optional roughness probe
• Active vibration damping system
