APPLICATIONS
• For testing of:
• Dial indicators (analog and digital)
• Dial comparators (analog and digital)
• Dial test indicator measuring devices
(analog and digital)
• Inductive and incremental probes
• 2-point bore gage
Positioning speed[mm/s]:2

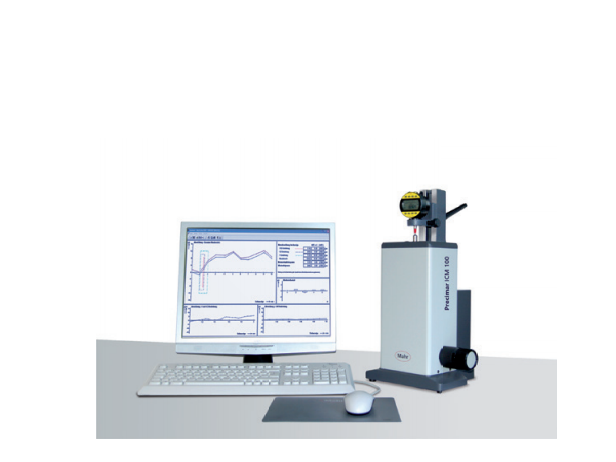

Type: Precimar ICM 100
Measuring range: 100 mm, 4 inch (101.66 mm)
Direct measuring range [mm]: 100
Measuring uncertainty MPEE1(L in mm) [µm]: ≤ (0.2 + L/250)
Digital numerical increment [µm]: 0.02
Device dimensions (LxWxH): 235 x 216 x 480
ACCESSORIES
• Holder for dial test indicator measuring devices
• Wide choice of adapters for digital dial indicators and
incremental measuring probes from various
manufacturers
• Please ask for the appropriate adapter
• Inductive probes from various manufacturers can be
connected to Precimar ICM 100 via the probe
interface.
• Holding device and software for testing 2-point bore
gages with a moving measuring pin (test in
accordance with VDI / VDE / DGQ 2618,
Part 13.2, 2005)
• Device for force sensor on request
• Camera attachment kit for precise and ergonomically
improved operation in semi-automatic measuring
procedures
• Calibration set for user calibration
• Factory or DAkkS/DKD calibrations available
