Capacity:30 L
Total volume:42 L
Working volume:30 L
Dimension:130 x 95 x 275 cm
Vessel and jacket maximum working pressure:3 bar (43.5 psig) / 4 bar (58 psig)
Type:Double layered fully enclosed capsule-type tank
Material:Direct contact to medium - 316L stainless steel; all others - 304 stainless steel
Surface finish:
Interior polish ≦ 25 Ra/in (0.6 μm) Mechanical polishing; Electropolish optional
Exterior polish ≦ 32 Ra/in (0.8 μm) Mechanical polishing; Electropolish optional
Ports:Ports designed according to user requirements
Piping and valve materials:
Parts that directly contact with the product/medium uses 316L stainless steel (≤25 Ra/in) internal polished tubing (BPE standard) :
A. Internal EP polished diaphragm type pneumatic valve and manual valve (BPE standard)
B. Tubing all welded with orbital welding
C. Vessel bottom drain uses a diaphragm valve, to minimize dead volume
D. Piping designed for ease of transfer to scale up (can be used as a seed fermentation system) or downstream process
Parts that do not directly contact product/medium
A. Constructed with 304 stainless steel
Controller:10.4” color industrial touch screen
Setting
* Automated sterilization process
* Automated fermentation program
DO
* 0-200%, Control range:0-100%, adjustable
* Software electrode calibration, with automatic temperature compensation function
* Includes one set of side-inserted stainless steel autoclavable DO electrode
* DO Stat features with intelligent feeding
pH
* PID control with adjustable deadband
* Control range0 to 14 (2-12 for maximum precision), resolution: 0.01 pH
* Calibration function with automatic temperature compensation function
* Includes one set of side-inserted, autoclavable pH probe with stainless steel housing
* pH Stat features with intelligent feeding
Pump
* Built-in peristaltic pumps
* Each feeding pump can run adjustable 15-step program
* Each pump can be adjusted for speed, forward and backward direction, and manual or automatic mode
* Each of the four peristaltic pumps can be designated for different functions: acid pump, base pump, antifoam pump, or substrate feeding pump
* Optional fifth and six peristaltic pump available
Temperature
* Vessel temperature is measured with a side-inserted PT-100 temperature probe and maintained using PID control.
* Control range: 0-130°C, ±0.1°C. Operational range up to 0-60°C
Agitation
* Manual or automatic control of agitation speed
* 15-step program to change speed, or use DO cascade control
Air supply and exhaustGas supply and dehumidifer: uses in-house air compressor or air dehumidifier
* Includes re-useable, autoclavable 0.2μm air filter for gas inlet
* Gas Inlet (air)
Includes mass flow controller:
2 vvm maximum according to the vessel capacity
* Gas Inlet (oxygen)
Includes pure oxygen rotameter (manual flow control):
1 vvm maximum according to the vessel capacity
* Includes oxygen gas solenoid valve, with automatic pulsed time control
Air outlet / Exhaust
* Exhaust port with stainless steel condenser
* Includes re-useable, autoclavable 0.2μm air filter
* Includes automated adjustable gas outlet valve to adjust vessel back pressure
* Can control manually or automatically via software
Utility Requirement
Capacity:30L
Power:Three phase 220V or 380V (note: can be customized to local standard)
Air:
At least 6 bar
60 L/min flow rate
Dehumidified
Oil-free
Peripheral factory water supply:Cooling water (tap water, at least 15oC below working temperature, must be soft water) ;
Pressure: at least 2 bar
Process water:RO Water
Plant steam:≥ 2 bar; dry steam with no entrained condensate
Process steam:≥ 2 bar; dry steam with no entrained condensate
Drain:In situ drain; ≥ 1"
*Customization on the SIP Fermentation system available upon request.

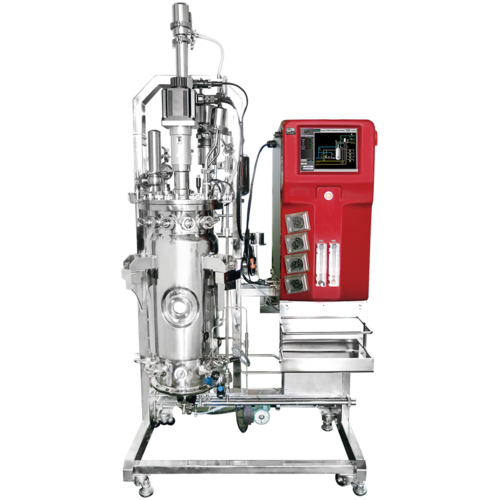

The 30L SIP Pilot Scale Fermentation Systems allows you to run small volume of fermentation experiments with ease. These systems are perfectly suitable for small scaling-up in the academic lab. The easy programming and operation on our Winpact software makes your operation procedure in your peace of mind. This fermenter comes with rolling wheels for mobility. All materials are made from the highest standard to ensure optimization of your fermentation process. A variety of optional devices are also available to maintain your optimum performance.
B1.Motor - Manual or automatic control of constant agitation speed.
B2.Stainless Steel - Vessel Special designed heating jacket provides better heating efficiency
B3.Peristaltic Pump - Uses four Watson Marlow built-in peristaltic pumps for all your feeding needs
B4.Control Station - Large screen and graphical user interface
