Dimension (WxLxH): 19.7"x11"x3.5" (500x280x90mm)
Gel Dimension (WxL):
10.2"x6.3" (260x160mm)
10.2"x9.5" (260x240mm)
10.2"x12.6" (260x320mm)
Maximum Sample:
336 for 10.2"x6.3" (260x160mm)Tray (6x56 sample combs)
504 for 10.2"x9.5" (260x240mm)Tray (9x56 sample combs)
672 for 10.2"x12.6" (260x320mm)Tray (12x56 sample combs)
Buffer Volume: 0.37gal (1400ml)
Construction:N /A
Cassette Type Electrode: Inexpensive, easy to replace
Made of 99.99% corrosion resistant pure platinum
Electrical Safety: Lid can only be fastened in one way
Upon lid removal, power is disconnected from buffer chamber
Rapid Casting Gel: Use flexible caster

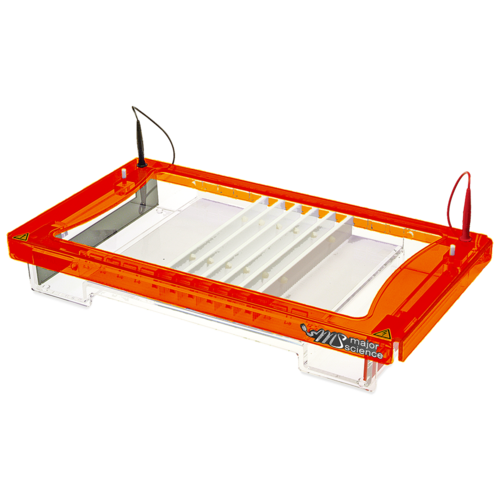

Maxi-plus is designed for rapid screening of very large numbers of cloning or PCR samples, and it has the maximum capacity of 672 samples per gel. This allows loading and analysis of exactly seven 96 well format microliter plates. The large gel run length of 320mm also allows resolution of samples over a long distance for separation of complex sample bands such as in restriction fragment analysis. Maxi-plus is available with a full length tray of 260x320mm or with two other tray length options of 260x160mm and 260x240mm so that user’s exact requirements can be met. In addition to options for single length gel trays, Maxi-plus is available with all three gel tray lengths to provide the maximum flexibility,versatility and value. Buffer recirculation ports are included as standard to allow enhanced resolution over extended runs, while loading guides enhance visibility for easy sample loading.
