Camera:1/1.8" interline UXGA monochrome progressive 2.0MP CCD
Pixels Size:4.4μmx4.4μm
Lens (Camera):F1.2, 12.5 – 75mm (with one +1 close-up lens), 6X zoom lens, manual
Camera Video Output:12 bit
Filter (Camera) *Ordered separately: Optical EtBr Filter / Optical SYBR Green Filter / Orange Amber Filter
Image Storage: Built-in 14GB Memory (3000 tiff images storage) and USB flash
Cabinet:Pull out, sliding transilluminator
Field Of View (WxL):Maximum filed od view 10.2"x8.3" (260x210mm)
Dimension (WxLxH):Approx. 16.1"x16.7"x35.8" (410x425x910mm)
Weight:Approx. 62.8lbs. (28.5kg)
Display:10.4” color touch screen, 800x600
Viewing Window:Built-in UV viewing window
Window Filter:Amber Filter embedded in viewing window (580nm)
Light Source:Built-in drawer type UV Transilluminator 312(302)nm; build-in LED white light
Optional Accessory
White Light Plate (power built-in)
Blue light plate (power built-in) 470nm
Saved Image:Max. 16bit
Grayscale:12bit, 0-4095 gray levels
Safety:CE
Rated Voltage:100-240V~, 50/60Hz
*MS 1D Analysis Software (MBE-IMG-SW) is included in for image analysis only.

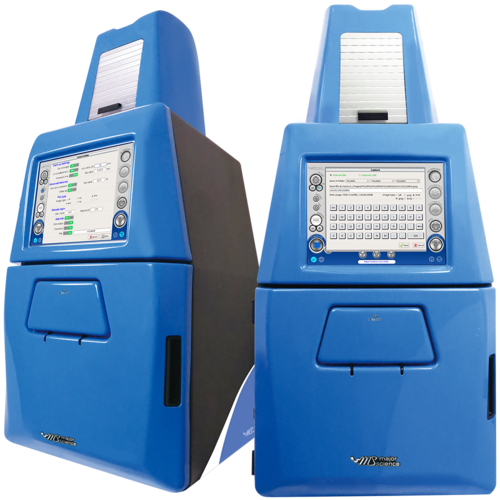

MS UVCI-2300, the truly standalone Gel Imaging System, delivers incredible image and sharpness with the power of an exceptionall close-up monochrome 2.0 mega-pixel CCD camera, and get you ready for beautifully discriminable DNA/Protein gel images in the spaciously intuitive 10.4” interface with color touch-screen. Our innovative systems are expandable with white and blue light plates coupled with the versatility of camera filters, no matter it’s an EtBr or EtBr-free operations, simply tab to view. Many post-imaging features like drawer-type platform and UV protection shield are added to your convenience for gel excision.
