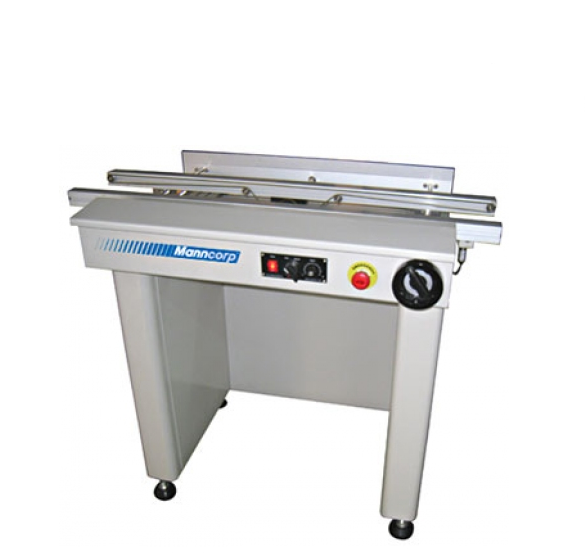

Manufacturer: Manncorp - USA
Model: BC-050X-W1
Origin: China
Warranty: 12 months
PCB Size: 50 mm L x 50 mm W to 530 mm L x 460 mm W (1.97" L x 1.97" W to 20.87" L x 18.11" W)
PCB Thickness: 0.4 mm min. (0.016" min.) 2.5 mm max. (0.098" max.)
Conveyor Direction: Left to right (standard) or right to left (optional) operation
Conveyor: 3 mm Diameter Edge Belt
Conveyor Speed: 2 - 11 m/min (approx. 6.56 - 36.09 ft/min)
Voltage: 110 VAC, 50/60 Hz
Power: 100 VA max.
Control: PLC Control
Machine Dimensions: 500 mm L x 800 mm W x 900 mm H (19.68" L x 31.5" W x 35.5" H)
Net Weight: 35 Kg (77 lbs.)
Shipping Weight: 65 Kg (143 lbs.)
