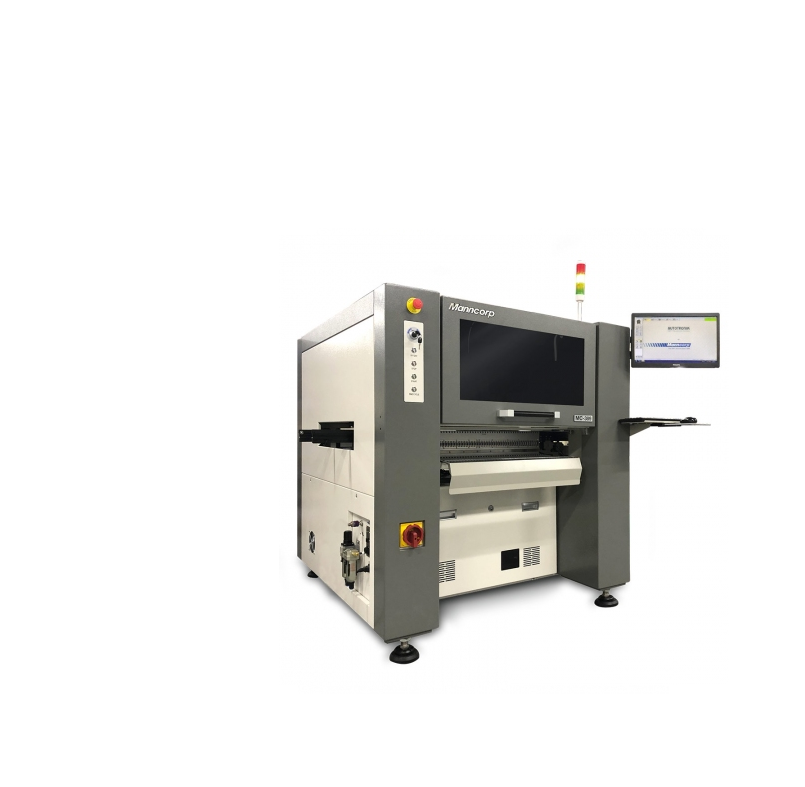

Manncorp MC-389 High Speed High Mix Pick and Place

Manufacturer: Manncorp - US

Model: MC-389

Origin: China

Warranty: 12 months

Placement Specifications

Number of Placement Heads:3

Placement Rate (IPC-9850)*:10,500 CPH

Placement Accuracy:30 µm, 3 Sigma

Minimum Component Size:0201 (01005 optional)

Maximum Component Size:100 mm x 150 mm (3.94" x 5.9")

Minimum Component Lead Pitch:0.3 mm (0.012")

BGA/CSP Placement Capability:Yes - Standard

Alignment Method:Dual-Vision Alignment System

Pick Up Specifications

Tool Changer:Included

Number of Tools:15

Accepts Additional Tool Changers:Yes

Integral Vacuum:Yes

PCB Specifications

PCB Loading Method:Manual loading in batch / standalone configuration (standard). Single-stage and 3-stage inline conveyors optional.

Max. Placement Area:650 mm x 380 mm (25.6" x 15") with conveyor; 650 mm x 460 mm (25.6" x 18.1") without conveyor

Fiducial Recognition/ Coordinate Correction:Yes

Bad Mark Detection:Yes

Feeder Capacity

Maximum Number of Feeder Ports:96 with inline conveyor; 160 batch configuration with feeders on four sides

Maximum Number of Waffle Trays:Dependant on PCB size

Programming

Operating System:Windows® Based

PC, Keyboard, Mouse:Yes

MonitorFlat LCD

Teaching Camera:Yes

Numeric Data Entry:Yes

CAD Download:Yes

Step and Repeat for Matrix Boards:Yes

Bar Code Reader for Feeders & Packaging:Yes

MIS and Optimization Functions:Yes

Off-Line Programming:Yes

Dispenser Specifications

Dispensing Head:Optional

Dispense Method:Time/Pressure

Dot Size / Placement Speed:Down to 0.5 mm / Up to 6,000 dots./hr

Mechanical Specifications

X-Y Axis Drive Mechanism:Ball Screw

X-Y Axis Drive Motors:AC Servo

X-Y Axis Encoding:Linear

X-Y Axis Resolution:0.005 mm (0.0002")

Z Axis Drive Motor:AC Servo

Z Axis Encoding:Rotary

Z Axis Resolution:0.02 mm (0.0008")

Θ Axis Drive Motor:DC Servo

Θ Axis Encoding:Rotary

Θ Axis Resolution:0.045°

Θ Axis Range of Motion:360°

Physical Specifications

Overall Dimensions(Approx. L x W x H):1300 mm L x 1420 mm W x 1460 mm H (51" x 56" x 57")

Approximate Net Weight:1100 Kg (2425 lbs.)

Facility Requirements

Standard Voltage:220 VAC, 50/60 Hz

Air Pressure:75 psi, 4 CFM

Service and Support

Remote Diagnostics:Ethernet

Warranty (Major Components):1 Year
