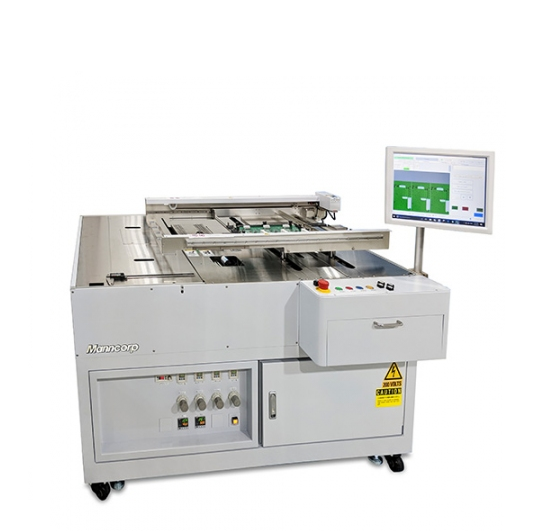

Manncorp ULTIMA NEO-L All-in-One Selective Soldering System

Manufacturer: Manncorp - USA

Model: ULTIMA NEO-L

Origin: China

Warranty: 12 months

PCB Holder and X-, Y-, Z-Axis Drive Mechanism

Maximum PCB Size: 380 mm x 460 mm (15" x 18")

Minimum PCB Size: 50 mm x 50 mm (2" x 2")

PCB Thickness: 0.8 mm - 2.0 mm (.032" - .080")

PCB Warp: 0.5 mm (0.020") maximum

Maximum PCB Weight: 2 kg (4.4 lbs.) including components; 4 kg (8.8 lbs.) capacity optional

Component Lead Length: 3 mm (0.12") recommended maximum

Component Height (Top Side): 50 mm (2") maximum above PCB top side

Component Height (Bottom Side): Soldering path programmable to avoid components and assemblies mounted on bottom side.

PCB Edge Clearance: 3 mm (0.12") for components; 5 mm (0.20") for solder pad edge

Positional Accuracy: ±0.1 mm (±0.004")

X-Axis Resolution: 0.032 mm (0.0013")

Y-Axis Resolution: 0.033 mm (0.0013")

Z-Axis Resolution: 0.008 mm (0.0003") 50cm2/sec

Travel Speed (While Soldering): Programmable from 0.1 mm/sec - 10.0 mm/sec (0.004"/sec - 0.4"/sec)

Travel Speed (Between Points): 400 mm/sec (15.75"/sec) maximum

Solder Wave and Bath

Solder Types: Both Lead-Free and Conventional Sn/Pb Solders; Second Separate Solder Pot Recommended When Using Both Types

Wave Diameter: Nozzle Dependent Based on Inner Diameter (2.5, 3.0, 4.0, 5.0, 6.0, 7.0, 8.0, 9.0, 10.0, 12.0, 14.0, 16.0, 20.0 mm Inner Diameter Nozzles Available)

Solder Wave Height: 4 mm (0.16") maximum

Solder Wave Height Adjustment: Controlled by Pump Motor RPM

Solder Wave Height Accuracy: ±0.3 mm (±0.012")

Solder Capacity: Approx. 16 kg (35 lbs.)

Solder Melting Method: Indirect Heating with Cartridge Heaters

Solder Temperature: Ambient to 300 °C

Solder Melt Time at Startup: Approx. 30 min.

Controller

Program Storage: Internal Memory for 1000 Steps Per File, Number of Files Determined by Hard Disc Drive

User Interface: Push-Button Controls and 15" Touch Screen Display

Utilities/Facilities Requirements

Machine Dimensions: 1067 mm L x 1575 mm W x 1194 mm H (42” x 62” x 47” )

Machine Weight: 400kg (880lbs)

Power Source: 208-240 VAC, Single Phase, 50/60 Hz, 4 KVA

Nitrogen Supply: 0.4 - 0.5 MPa (60-75 psi); 25 l/min (0.9 CFM)
