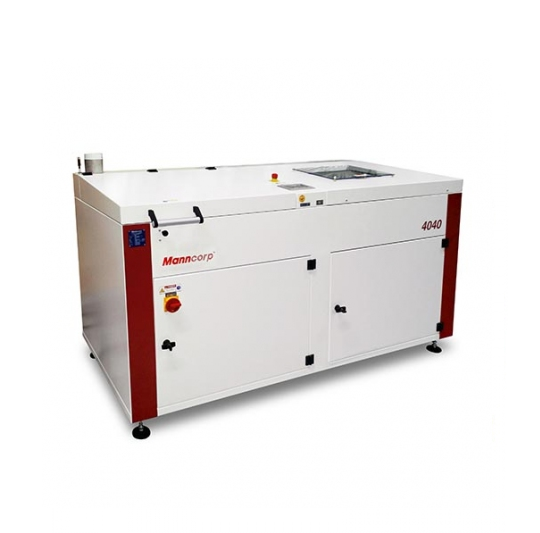

Manncorp VP4040 Vapor Phase Soldering System

Manufacturer: Manncorp - USA

Model: VP4040

Origin: China

Warranty: 12 months

Max. PCB Size:460 x 410 x 80 mm (18.1" x 16.1" x 3.2")

Max. Board Weight:5 Kg (11 lbs) total per load

Fluid Capacity:27 Kg (59.5 lbs)

Avg. Fluid Consumption:1.5 – 2 g/cycle

Cooling Water Flow Requirement:2.5 – 4.0 bar (35 – 60 psi). Tap water or recirculating chiller

Startup Time:25 min

Avg. Cycle Time:3 – 5 min (profile dependent)

Voltage Requirements:208V, three-phase, 50/60 Hz

Power Consumption:2.8 KW (Soldering); 1.8 KW (Standby Mode)

Dimensions (L x W x H):2000 x 800 x 1260 mm (78.75" x 31.5" x 49.6")

Net Weight:370 Kg (816 lbs)
