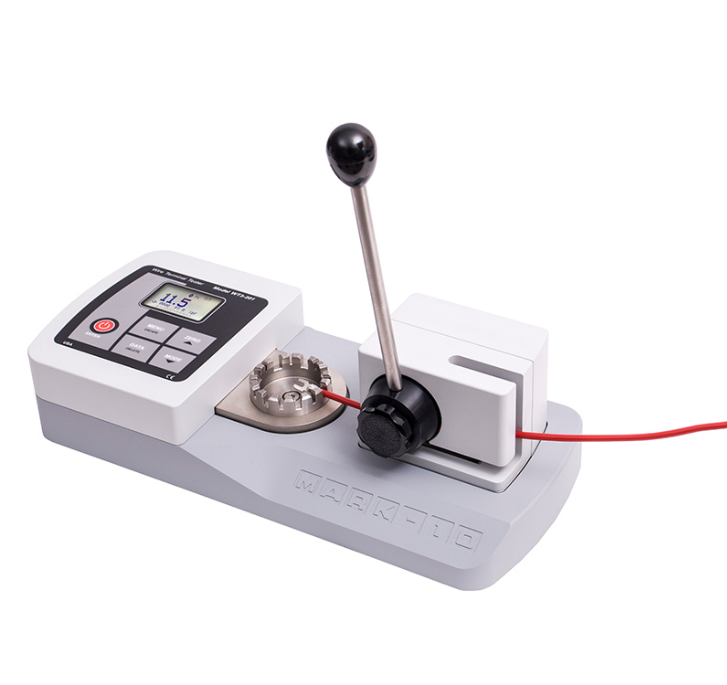

Mark-10 WT3-201U Wire Crimp Pull Tester (200 x 0.1 lbF, 3200 x 2 ozF)

Force Capacity: 200 x 0.1 lbF, 3200 x 2 ozF, 100 x 0.05 kgF, 1000 x 0.5 N, 1 x 0.0005 kN

Accuracy: ±0.2% of full scale

Wire diameter range: AWG30 - AWG 3 [0.01 - 0.25 in (0.3 - 6.3 mm)]

Minimum sample length: 6.0 in [152 mm], excluding termination

Max. elongation: 1.15 in [29.2 mm]

Power:

AC adapter: 100-240VAC, 50-60 Hz, 0.3 A

Battery: Rechargeable 8.4V NiMH

Low battery indicator appears when battery level is low, and gauge powers off automatically when power reaches critical stage

Sampling Rate: 7000 Hz

Outputs:

USB / RS-232: Configurable up to 115,200 baud

Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices

Analog: ±1 VDC, ±2% of full scale at capacity

Safe overload: 150% of full scale (display shows “OVER” at 110% and above)

Weight: 16.1 lb [7.3 kg]

Environmental requirements: 40 - 100°F, max. 96% humidity, non-condensating

Type: 200 lbF, 220V UK
