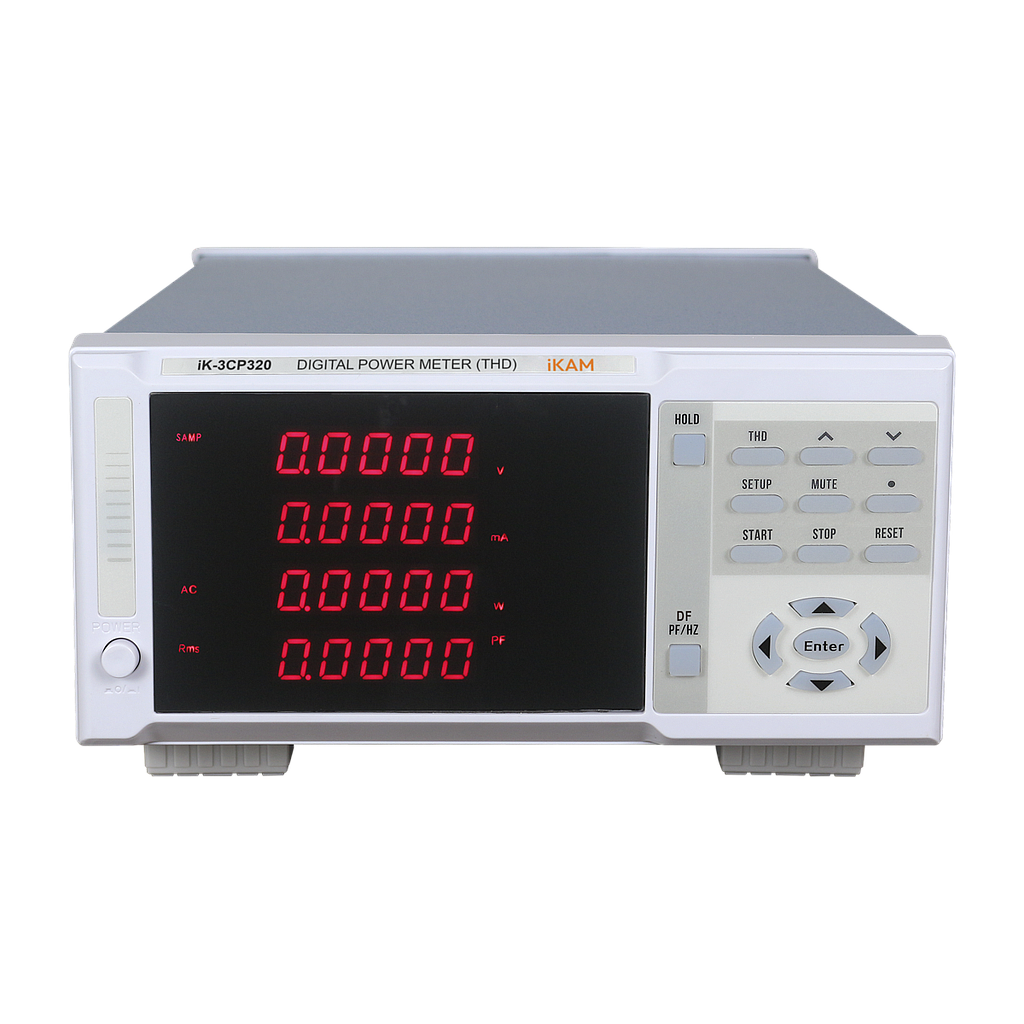

iKAM iK-3CP320 Electrical parameter tester (3-600V; 0.05mA~20A)

Window display: Five high precision digital tube 4 Windows

Input voltage: 3-600V

Input current: 0.05mA~20A

Note: (Specially customizable for other ranges of voltage and current)

Power factor: -1.000~1.000

Power: 0.15mW-12000W

Reference shows: THD, V, A, W, PF, Hz

Active power:

Voltage and current: Total harmonics and 0~50 single harmonics

Frequency range: AC:45Hz~65Hz, bandwidth: 5KHz

Electric energy integration: 0~99999Kwh

Electric energy time: 0~9999:59:59

Test accuracy: 0.1 level

Range switching: automatic

Measurement mode: AC/DC

Measuring speed: 0.2 seconds/time

Lock function: Use when the data fluctuates, convenient reading

Sound and light alarm / upper and lower limit judgment function: Have

Communication mode: RS232

DF values measured: Have

Phase Angle: Have

Current THD-40: Have

THD-40-DF: Have
