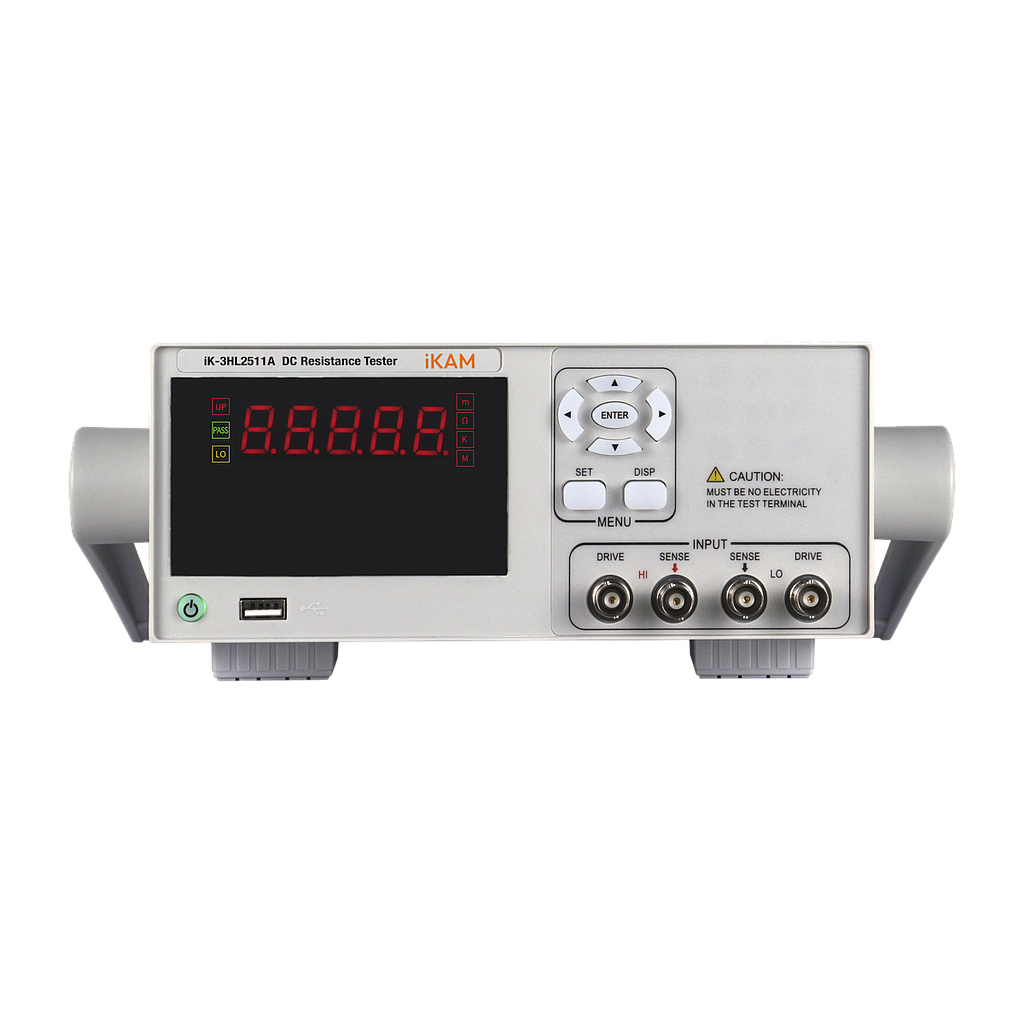

iKAM iK-3HL2511A DC low resistance Tester (10μΩ~300kΩ)

Display: high-definition digital tube

Reading digits: 4 and a half

Measurement range: 10μΩ~300kΩ

Resistance range: 20Ω / 200Ω / 300kΩ (only HL2511A)

Basic measurement accuracy: 0.1% (refer to the user manual for detailed information)

Resistance measurement time: fast 65ms/time, slow 125ms/time

Test end configuration: four terminals

Range mode: automatic, maintain

Trigger mode: internal, external

Zeroing: can reset the entire range to zero

Comparator - Signal output: HI/IN/LO

Comparator - Sound: mode: OFF, IN, HI/LO

Interface configuration: Optional: RS232/485, HANDLER

Attachment: power cord, four terminal low resistance test wire
