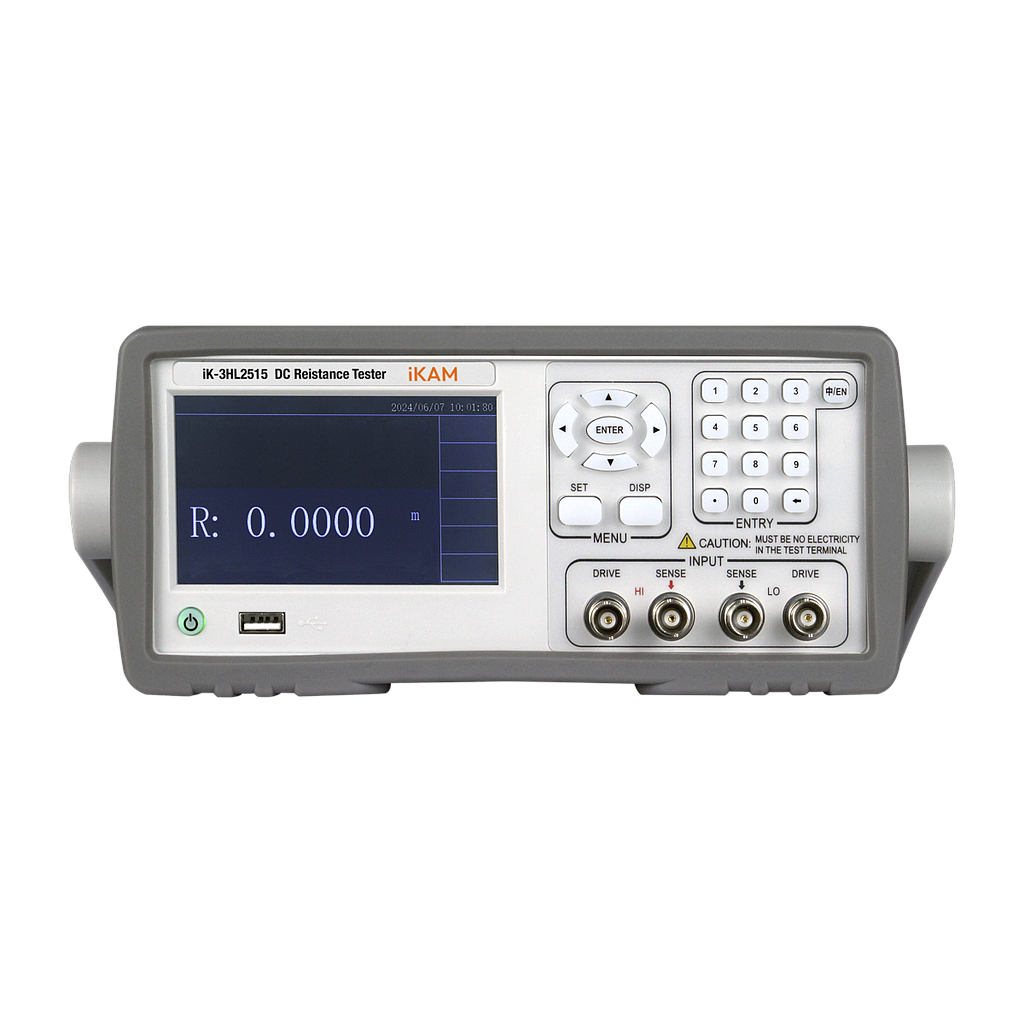

iKAM iK-3HL2515 DC low resistance Tester (0.1μΩ~110MΩ)

Display: 4.3-inch high-definition LCD touch screen

Reading digits: 5 and a half positions

Measurement range: 0.1μΩ~110MΩ

Resistance range: 20mΩ / 200mΩ / 2Ω / 20Ω / 200Ω / 2kΩ / 20kΩ / 100kΩ / 1MΩ / 10MΩ / 100MΩ

Basic measurement accuracy: 0.1% (refer to the user manual for detailed information)

Resistance measurement time: fast: 7ms, medium speed: 42ms, slow speed: 150ms

Temperature measurement time: 50 ± 10ms

Test end configuration: four terminals

Low voltage measurement: open circuit voltage ≤ 60mV, effective range: 2Ω, 20Ω, 200Ω, 2kΩ

Thermoelectric elimination: √

Statistical functions: Qualified and unqualified

Measurement settings parameters: Save 10 sets

Temperature measurement: sensor: PT1000 -200.0℃~300℃; display: -99.9℃~999.9℃

Other functions: temperature compensation

Comparator – Signal output: HI/IN/LO

Comparator – Sound: Call mode: OFF, IN, HI/LO

Comparator – Limit setting: mode 3, absolute value upper/lower

Interface configuration: standard: RS232/RS485, USB interface HANDLERS

Standard accessory: power cord, four terminal low resistance test wire, PT1000 thermal resistor
