MEMMERT UF450 Universal oven (449 l, 300°C, forced air circulation, 1 display) | EMINKH.COM

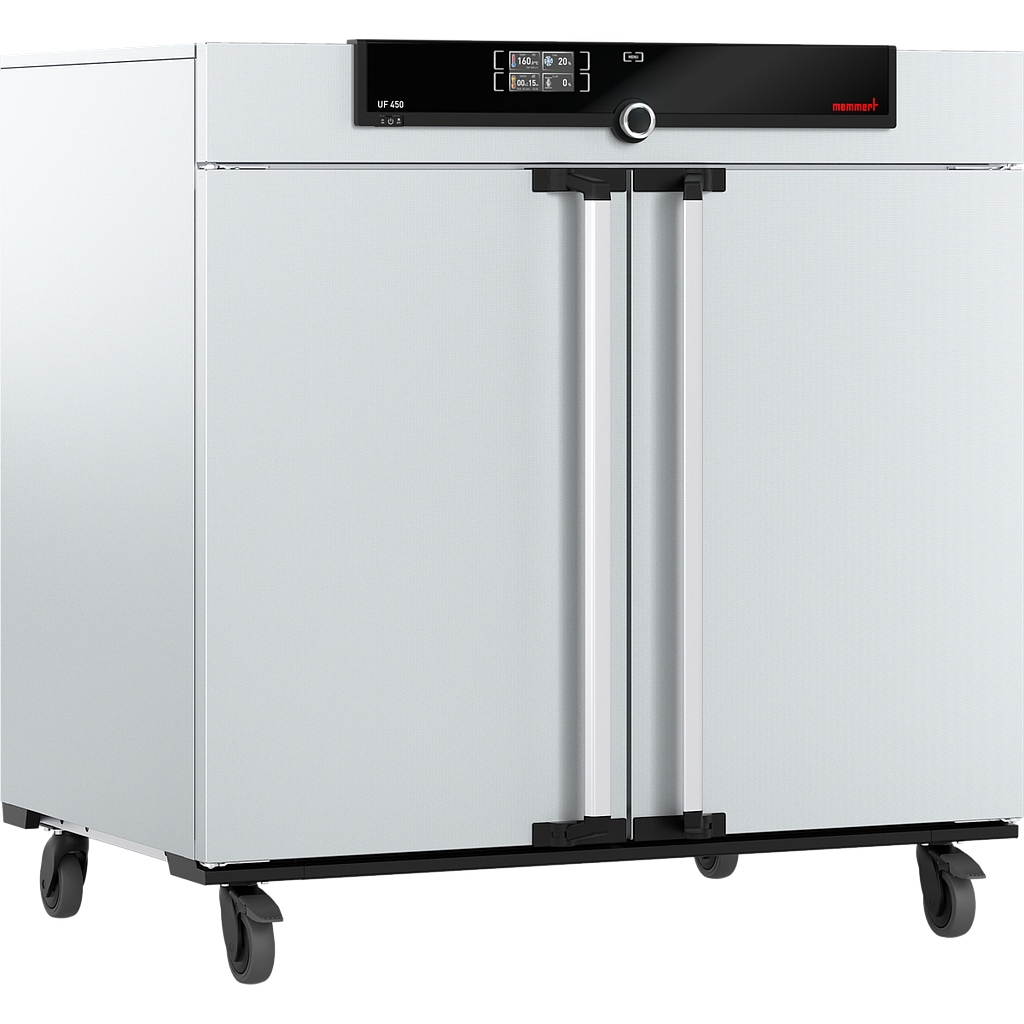

MEMMERT UF450 Universal oven (449 l, 300°C, forced air circulation, 1 display)

Name: MEMMERT UF450 Universal oven (449 l, 300°C, forced air circulation, 1 display)
Brand: MEMMERT

ManufacturerMEMMERT(View more products from this manufacturer)

ModelUF450

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

forced air circulation by quiet air turbine, adjustable in 10% steps
controller with 1 high-definition TFT-colour displays
digital timer adjustable from 1 minute to 99 days
Interior - Heating Concept: 1040 x 720 x 600 mm, 449 l
Max. loading of chamber: 300 kg
Temperature Range: min. 5°C above ambient up to +300°C
Voltage / Power Rating: 3p, 400 V / 5.800 W
net weight approx. 170 kg
Steel Casing: 1224 x 1247 x 784 mm

forced air circulation by quiet air turbine, adjustable in 10% steps
adjustment of pre-heated fresh air admixture by air flap control in 10% steps
vent connection with restrictor flap
adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display
self-diagnostics for fault analysis
1 Pt100 sensor DIN class A in 4-wire-circuit
digital timer adjustable from 1 minute to 99 days
parameters adjustable on ControlCOCKPIT: temperature (Celsius or Fahrenheit), fan speed, air flap position, programme time, time zones, summertime/wintertime
SetpointWAIT function - the process time does not start until the set temperature is reached
resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C and for actual values 0.1°C (LED)
calibration facility directly at ControlCOCKPIT for three freely selectable temperature values
programme stored in case of power failure
incl. works calibration certificate for +160°C

adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12 880 to switch off the heating approx. 20°C above nominal temperature

w x h x d: 1224 x 1247 x 784 mm
fully insulated stainless steel doors with 2-point locking (compression door lock)
rear zinc-plated steel
on lockable castors

w x h x d: 1040 x 720 x 600 mm, 449 l
easy-to-clean interior,made of stainless steel,reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
2 stainless steel grids
Max. loading of chamber: 300 kg

min.10°C above ambient up to +300°C

400 V (+/ 10%), 3 phases/N, 50/60 Hz / approx. 5.800 W

net weight approx. 170 kg
gross weight carton approx. 240 kg
dimensions approx.:
carton w x h x d: 133 x 145 x 105 cm
the appliances must be transported upright

8419 8998

Federal Republic of Germany

DE 66812464
