Manufacturer: Met One

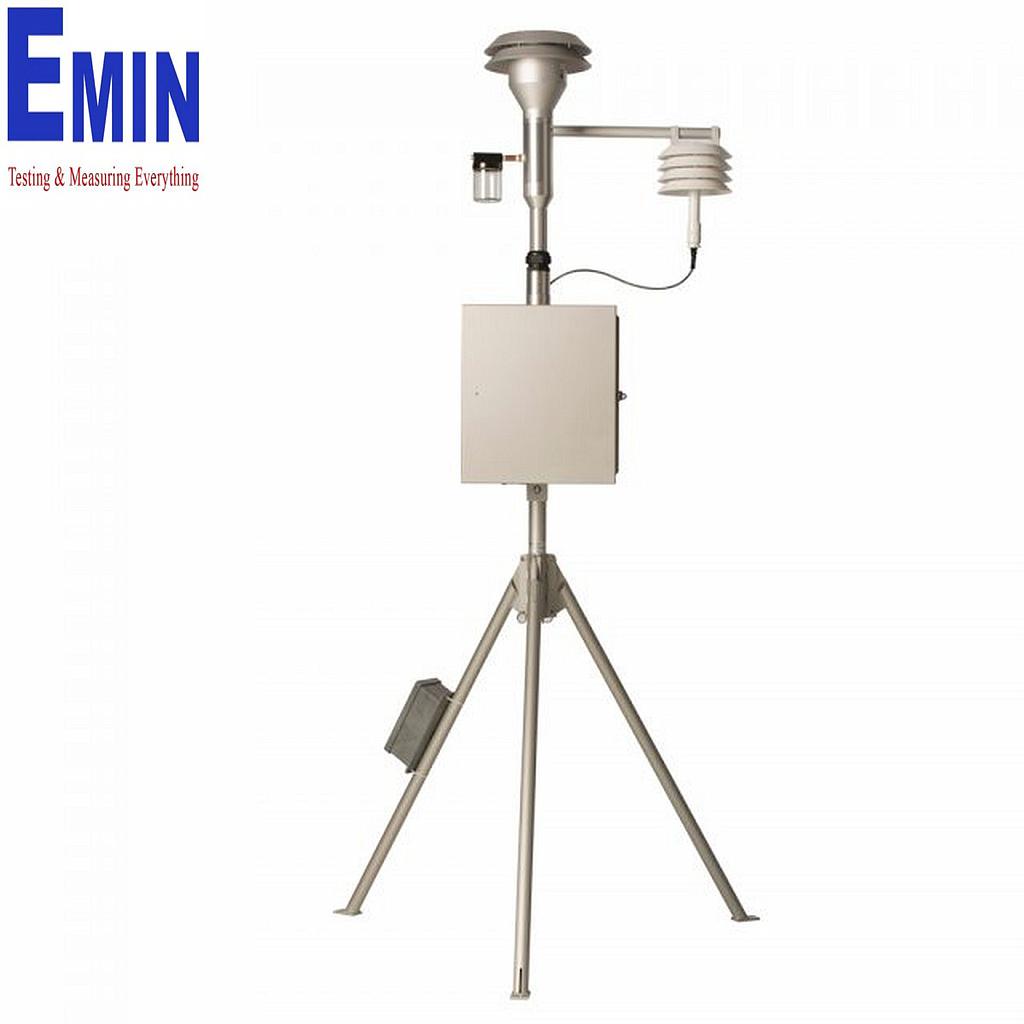

Model: E-BAM
Origin: USA
Warranty: 12 months
Advanced Features
- Accuracy and precision consistent with U.S. EPA requirements for Class III PM2.5 and PM10 measurement.
- Real-time, accurate results without correction factors, regardless of season or geographic location.
- rue ambient sampling provides accurate measurement of semi-volatile nitrates and organic compounds.
- Lightweight, rugged construction is easily mounted on a tripod in minutes.
- All-weather construction allows for true ambient sampling.
- Operates on AC or DC power. Battery and Solar options available upon request.
| Range: | 0 – 65 mg per cubic meter |
| Accuracy: | 2.5 μg or 10% in 24 hour period |
| Measurement Cycle: | Hourly measurements with 1, 5, 10, 15, or 30 min real-time averages |
| Beta Source: | C14, less than 75 microcurie, Half life of 5730 years |
| Detector: | Scintillation probe |
| Analog Output: | 0-1V, 0-2.5v, 0-5V, selectable hourly or real-time output |
| Filter Tape: | Continuous glass fiber filter |
| Inlet: | Compatible with EPA PM10and PM2.5inlets |
| Flow Rate: | 16.7 liters per minute, adjustable |
| Flow Accuracy: | +/- 2% of reading, volumetric flow controlled |
| Sample Pump: | Dual diaphragm type, DC powered, 4000 hr rating |
| Alarm Signals: | Filter, flow, power and operation failure |
| Input Power: | 12 Volts DC @ 48 Watts max |
| Alarm Contact Closure: | 2 Amp @ 240 VAC max |
| Operating Temperature: | -30 Deg C to 50 Deg C |
| Enclosure: | 41 cm x 36 cm x 20 cm, 13kg |
| Standard Components | ||
| E-BAM is a complete measurement system it comes with the following: | ||
| 8 Channel Datalogger | Internal DC Vacuum Pump Standard | |
| Real-Time Concentration | PM10 Inlet | |
| Aluminum Tripod | Ambient Temperature Sensor | |
| Volumetric Flow Control | Weatherproof Enclosure | |
| Filter Temperature Sensor | Filter RH Sensor | |
| Filter Pressure Sensor | Calibration Membrane | |
| Options and Accessories | ||
| BX-302 Zero Calibration Kit | EX-034 Wind speed and direction sensor | |
| BX-305 Leak check valve | EX-121 AC Power supply, 100-240 VAC, 12 VDC output | |
| BX-307 Flow Calibrator | EX-593 Ambient RH Sensor | |
| BX-308 PM2.5 Sharp-Cut Cyclone | EX-996 Phone modem kit | |
| BX-803 TSP Inlet | EX-911 Cell modem kit | |
| 460130 Filter tape, roll | 9425 Wall mount bracket | |
| Airsis Satellite modem kit | External AC Vacuum Pump | |
| MMP MicroMet Plus Software | Solar Panel Array | |
