Dimensions: 1700 x 700 x 1000 mm / 5.6 x 2.3 x 3.3 ft
Max. support surface: 800 x 600 mm / 31 1/2 x 23 5/8 "
Working height: 850 mm / 33 1/2 "
Cutting height: 0 - 85 mm // 0 - 3 5/16 "
Maximum cutting height 90/45°: 85 / 53 mm // 3 5/16 / 2 1/16 "
Maximum cutting width at parallel guide/rip fence: 340 mm / 13 3/8 "
Maximum material width at mitre fence: 250 mm / 9 13/16 "
No-load speed: 2990 rpm
Cutting speed: 50 m/s / 164 ft/s
Saw blade: 315 x 30 mm / 12 3/8 x 1.181 "
Saw blade swivel range: 0 - 45 °
Mains voltage: 220 - 240 V
Rated input power: 3100 W
Weight: 75 kg / 165 lbs kg
Noise emission
Sound pressure level: 97 dB(A)
Sound power level (LwA): 106 dB(A)
Uncertainty of measurement K: 4 dB(A)
Delivery
Carbide saw blade with alternately bevel-ground tips (24 teeth)
Mitre Fence
Table extension (600 x 800 mm)
Chip and Dust Extraction Unit
Push stick
Wheel set incl. handles
Parallel Guide / Rip Fence
Accessories
SAWING
Circular saw blades, Other accessories for semi-stationary/stationary circular saws, Other accessories for semi-stationary/stationary saws
OTHER ACCESSORIES
Occupational safety
Datasheet
Features
Restart protection: prevents unintentional start-up after power supply interruption

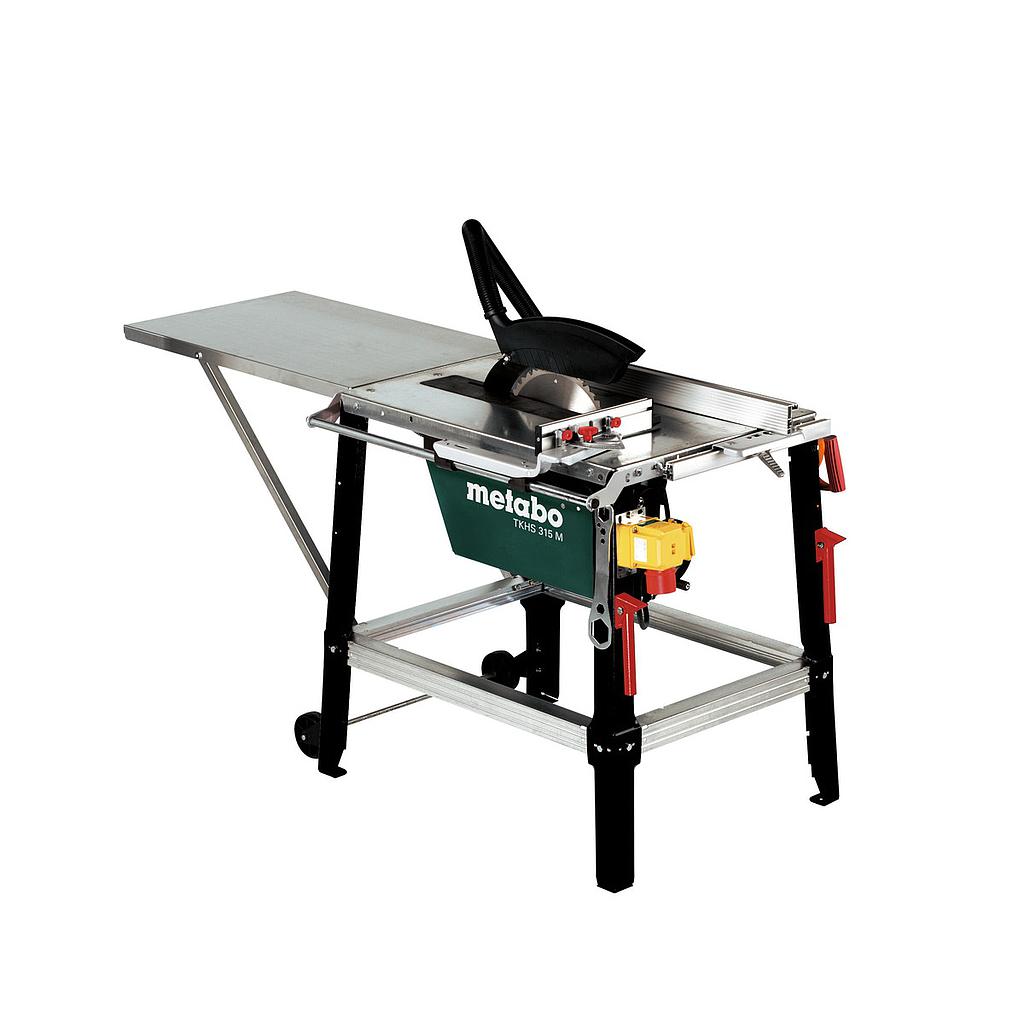

Precise, powerful table saw in professional configuration – quick to adapt for every application
Ideal for sawing squared timber, boards, panels and wood-like materials in the workshop and at construction sites
Quiet induction motor with motor brake and overload protection - maintenance-free and robust.
Mitre fence with linear stop, can also be used a sliding table
Sturdy parallel guide/ripping fence with quick fastening
Freely height-adjustable saw blade
Comfortable setting of the saw blade inclination from the front
Sturdy, powder-coated sheet steel design and galvanised table-top
Foldable table length extension
Frame and motor pre-mounted
