Rated input power: 750 W
Maximum delivery rate: 3800 l/h / 1004 gal/h
Maximum delivery height: 55 m / 180 ft
Maximum pressure: 5.5 bar / 79.8 psi
Maximum immersion depth: 20 m / 65.6 ft
Discharge port: 1" female thread
Pump housing: Stainless steel/plastic
Pump diameter: 98 mm
Protection type IP: IP X8
Number of impellers: 7
Dimensions: 98 x 98 x 920 mm / 3 7/8 x 3 7/8 x 36 7/32 "
Weight: 12 kg / 26.5 lbs
Cable length: 22 m / 72 ft
Accessories
OTHER ACCESSORIES
Accessories for water and pump technology
Datasheet
Features

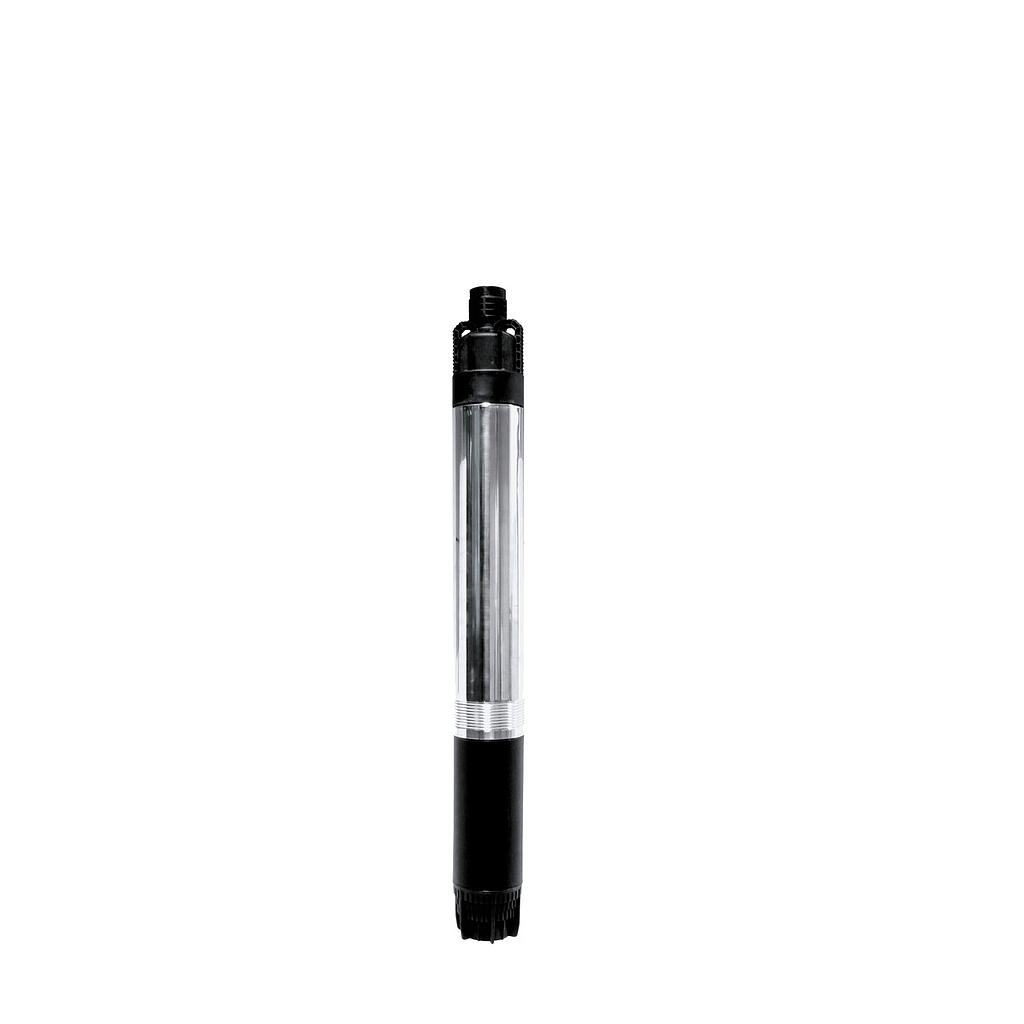

Especially suitable for great depths, as in bore wells and shafts
For garden irrigation and groundwater pumping, as well as pumping, pumping empty, pumping dry and circulation of clear water
Overload protection: protects the motor from overheating
Integrated check valve prevents dry running of the pump when it is switched off, enabling a short restart process
Robust pump head with brass thread insert and fixing eyelets for the drain rope
7-level pump running gear for particularly high pump capacity
Suitable for bore wells of 100 mm Ø (4")
Pump housing made of stainless steel and impact-resistant plastic
22m Connection cable for more immersion depth
