Type of battery pack: Li-ion
Battery voltage: 18 V
Battery pack capacity: 2 x 2 Ah
Maximum torque - soft: 34 Nm / 301 in-lbs
Maximum torque, hard: 60 Nm / 531 in-lbs
Adjustable torque: 0.7 - 8 Nm // 6 - 71 in-lbs
Ø Drill masonry: 13 mm / 1/2 "
Ø Drill steel: 13 mm / 1/2 "
Ø Drill soft wood: 38 mm / 1 1/2 "
No-load speed: 0 - 600 / 0 - 2100 rpm
Maximum impact rate: 31950 bpm
Chuck capacity: 1.5 - 13 mm // 1/16 - 1/2 "
Weight (including battery pack): 1.5 kg / 3.3 lbs
Vibration
Drilling in metal: 3.4 m/s²
Uncertainty of measurement K: 1.5 m/s²
Impact drilling concrete: 17 m/s²
Uncertainty of measurement K: 1.5 m/s²
Noise emission
Sound pressure level: 91 dB(A)
Sound power level (LwA): 102 dB(A)
Uncertainty of measurement K: 3 dB(A)
Delivery
Keyless chuck
Charger ASC 55 "AIR COOLED"
Plastic carry case
Belt hook and bit case
2 x Li-Power battery packs (18 V/2.0 Ah)
Accessories
DRILLING/CHISELLING
Concrete/stone drill bits, Wood drill bits, Metal drill bits, Universal drill bits, Glass drill bits, Diamond drill bits, Drill bit assortments, Further accessories for (impact) drills
ACCESSORY SETS/SPECIALS
Bit sets, Drill bit sets
CHUCKS
Keyless chucks
SCREWDRIVING/FIXING
Screwdriving bits, Screwdriving bit sets, Bit holders, Screw-type angle attachments, Accessories for impact drivers & wrenches, Other accesssories screwdriving/fixing
ACCESSORIES FOR CORDLESS MACHINES
Battery packs, Charger
OTHER ACCESSORIES
Case systems, Occupational safety
Datasheet
Features

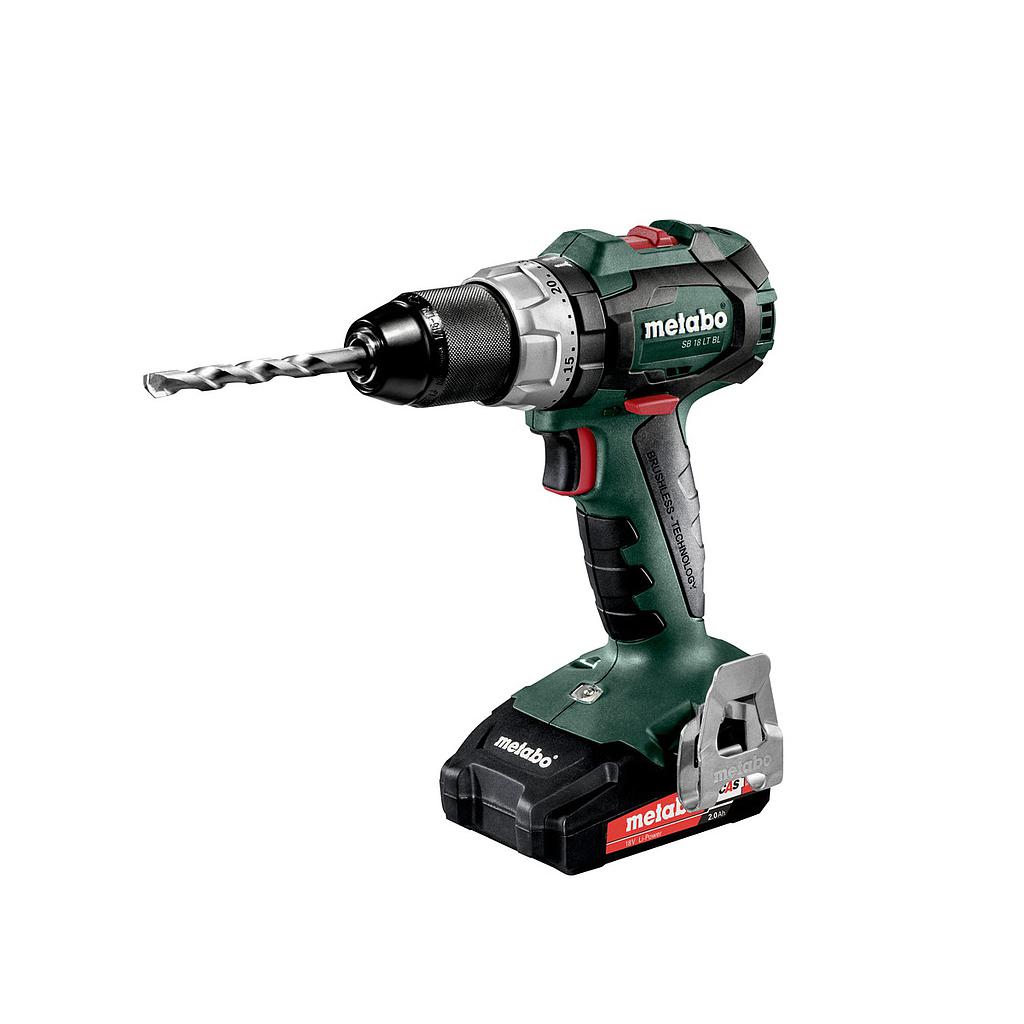

Brushless hammer drill with compact design for universal and demanding applications
Unique Metabo brushless motor for quick work progress and highest efficiency when drilling and screwdriving
High-performance impact mechanism for optimum drilling performance
Integrated working light to illuminate the contact area
With handy belt hook and bit case which can be fixed either on the right or left side
Battery packs with capacity display for checking the charge status
Ultra-M technology: highest performance, gentle charging and 3 years of warranty on the battery pack.
