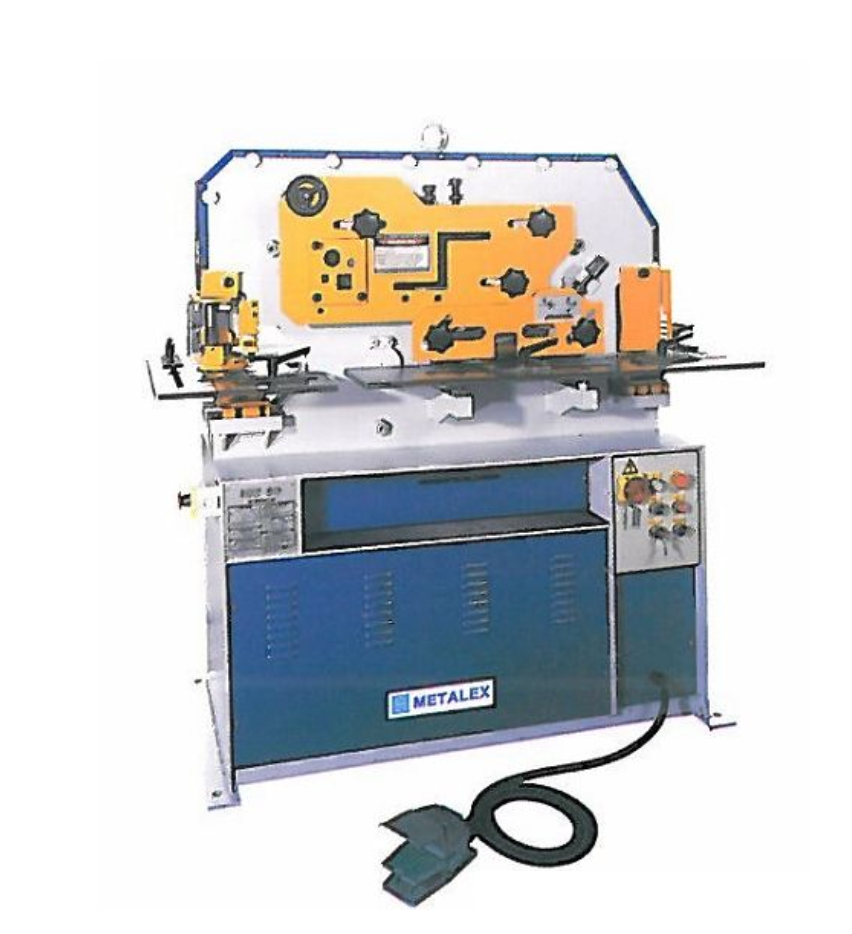

METALEX HIW-45 Hydraulic Ironworker

Punching

- Rated capacity: 45 T

- Maximum capacity: 22 x 15 mm

- Diameterxthickness: 38 x 8 mm

- Stroke length: 50 mm

- Speed - 20 mm travel: 20 cycles/min

- Throat size (standard): 175 mm

- Deep throat: 210mm

- Largest hole (optional): 110 mm

- Max. Section flange punch: 102mm

- Working height: 940 mm

Shearing

- Flat Bar - max. thickness: 200 x 15 mm

- Flat bar - max. width: 300 x 12 mm

- Angle Iron trim: 80 x 10 mm

- Working height: 940 mm

Angle Cutting

- 90° cut: 100 x 10 mm

- 45° Mitre cut: 70 x 6 mm

- Working height: 1140 mm

Section Cutting

- Round / Square bar: 30/30 mm

- Channel / Beam (optional): 80 x 45 mm

- Tee (optional): 40 x 7 mm

- Working height: 1135 mm

Notching

- Material thickness: 8 mm

- Width: 35 mm

- Depth vee (optional) / Rectangular: 60/75 mm

- Angle flange: 80 x 8 mm

- Working height: 940 mm

Techinical

- Motor: 5 Hp

- Net weight / Gross weight: 1100/1200 kg

- Machine dimension: 145 x 59 x 162 cm

- Packing dimension: 153 x 77 x 182 cm
