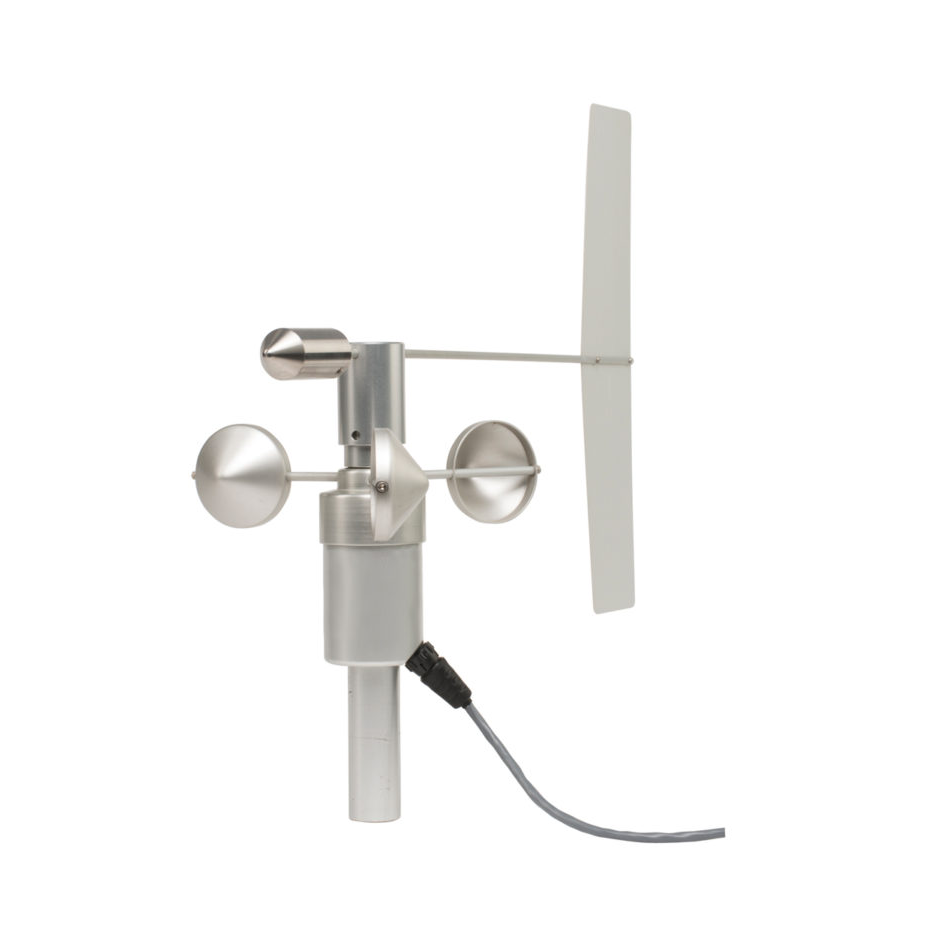

METONE 034E Wind Sensor (0~167mph; 0~360°; 0~356°)

Wind Speed

Range: 0~167mph (0~75m/s)

Starting Threshold: 0.9mph (0.4m/s)

Accuracy < 22.7 mph: 0.25mph (0.1m/s)

Accuracy > 22.7 mph: ±1.0% of true

Wind Direction

Range:

Mechanical: 0~360°

Electrical: 0~356°

Starting Threshold: 0.9mph (0.4m/s)

Accuracy: ±3°

Damping Ratio: 0.25 standard (0.4 to 0.6 optional)

Resolution: < 0.5°

Temperature Range: Minimal icing conditions: -30~70°C (-22~158°F)

Output Signal

Wind Speed: Pulsed contact closure

Wind Direction: Potentiometer output (0~10K ohms)

Physical Characteristics

Sensor Weight: 1lb 12.5oz (0.81kg)

Finish: Clear anodized aluminum

Cable & Mounting

• P/N 3013: Cable Assembly; specify length in feet or meters

• Mounting: PN 2954 Mounting & Alignment Adapter
