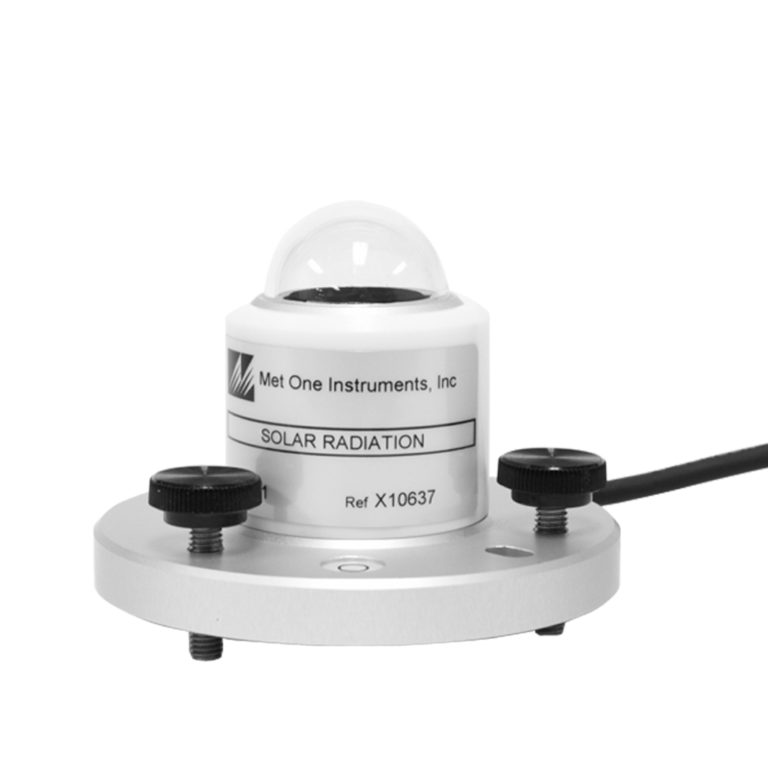

Sensor Type: Thermopile Pyranometer
Wavelength Range: 300~2800nm
Sensing Method: Black paint sensing plate
Sensitivity: 5~15mV/kW/m2
Output Accuracy: Approx. ±3%
Response Time: <16sec (95%)
Zero Offset: <5W/m2 (temp change 5k/h)
Non-linearity: <2% (0~1000W/m2)
Azimuth Error: <30W/m2 (1000W/m2 beam @ 80°)
Tilt Error: <2% (0-90° 1000 W/m2)
Temperature Range: -40~60°C
Field of View: 180°
Measurement Range: 0~2000W/m2
Temperature Dependence: <5% (-10~40°C)
Body Material: Aluminum (PBT cover)
Waterproof: IP67
Cable: 10m shielded cable included, S-VSVC, 0.16in dia. (4mm)
Weight: 7oz (200g) sensor, 1lb 8oz (700g) with 10m Cable
Dimension: 3.2in dia. X 2.3in H. (80mm dia. x 57mm)
