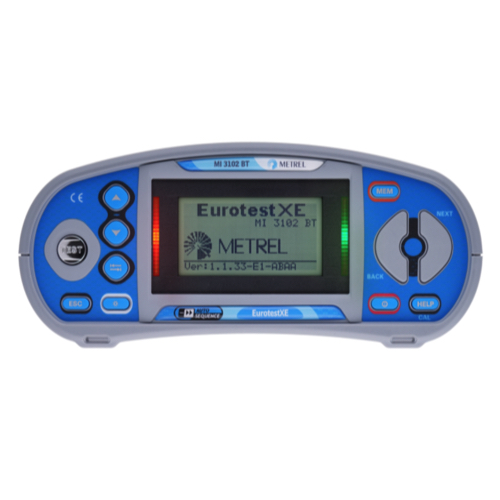

Metrel MI 3102 BT Standard set Multifunctional Electrical Installation Tester (50 V ~ 1000 V)

Continuity

Test Current 7 mA 2-wire:

0.00 Ω ... 19.99 Ω / 0.1 Ω / ±(5 % of r. + 5 digits)

20.0 Ω ... 1999 Ω / 1 Ω / ±(5 % of r. + 5 digits)

Test Current 200 mA 2-wire:

0.00 Ω ... 19.99 Ω / 0.01 Ω / ±(3 % of r. + 3 digits)

20.0 Ω ... 199.9 Ω / 0.1 Ω / ±(5 % of r.)

200.0 Ω ... 1999 Ω / 1 Ω / ±(5 % of r.)

Insulation Resistance

Test Voltage 50/100/250 V:

0.00 MΩ ... 19.99 MΩ / 0.01 MΩ / ±(5 % of r. + 3 digits)

20.0 MΩ ... 99.9 MΩ / 0.1 MΩ / ±(10 % of r.)

100.0 MΩ ... 199.9 MΩ / 0.1 MΩ / ±(20 % of r.)

Test Voltage 500/1000 V:

0.00 MΩ ... 19.99 MΩ / 0.01 MΩ / ±(5 % of r. + 3 digits)

20.0 MΩ ... 199.9 MΩ / 0.1 MΩ / ±(5 % of r.)

200 MΩ ... 999 MΩ / 1 MΩ / ±(10 % of r.)

RCD Test

Contact Voltage (Uc):

0.00 V ... 19.99 V / 0.1 V / (-0 %/+15 %) of r. ± 10 digits

20.0 V ... 99.9 V / 0.1 V / (-0 %/+15 %) of r.

Trip-out Time (t):

0.0 ms ... 40.0 ms / 0.1 ms / ±1 ms

0.0 ms ... max. time / 0.1 ms / ±3 ms

Trip-out Current (I Ramp):

0.2×IΔN ... 2.2×IΔN / 0.05×IΔN / ±0.1×IΔN

Impedance

Zline (L-L, L-N) & Zloop (L-PE):

0.00 Ω ... 9.99 Ω / 0.01 Ω / ±(5 % of r. + 5 digits)

10.0 Ω ... 99.9 Ω / 0.1 Ω / ±(5 % of r. + 5 digits)

100 Ω ... 999 Ω / 1 Ω / ±(10 % of r.)

1.00 kΩ ... 9.99 kΩ / 10 Ω / ±(10 % of r.)

Voltage & Frequency

Voltage TRMS:

0 V … 550 V / 1 V / ±(2 % of r. + 2 digits)

Frequency:

0.00 Hz ... 9.99 Hz / 0.01 Hz / ±(0.2 % of r. + 1 digit)

10.0 Hz ... 499.9 Hz / 0.1 Hz / ±(0.2 % of r. + 1 digit)

Earth Resistance

3-wire Method:

0.00 Ω ... 19.99 Ω / 0.01 Ω / ±(5 % of r. + 5 digits)

20.0 Ω ... 199.9 Ω / 0.1 Ω / ±(5 % of r. + 5 digits)

200.0 Ω ... 9999 Ω / 1 Ω / ±(5 % of r. + 5 digits)

2-clamp Method:

0.00 Ω ... 19.99 Ω / 0.01 Ω / ±(10 % of r. + 10 digits)

20.0 Ω ... 30.0 Ω / 0.1 Ω / ±(20 % of r.)

30.1 Ω ... 99.9 Ω / 0.1 Ω / ±(30 % of r.)

General Data

Power Supply: 9 VDC (6 x 1.5 V battery or accu, size AA)

Overvoltage Category: 1000 V DC CAT II; 600 V CAT III; 300 V CAT IV

Protection Class: Double insulation

COM Port: BT, USB, RS232

Weight: 1.3 kg

Dimensions (L x H x W): 230 x 103 x 115 mm

• Instrument EurotestXE

• Plug commander, 1.5 m

• Test lead, 3 x 1.5 m

• Earth test set, 3-wire, 20 m (test lead, 4 m; 2 x test

lead, 20 m; 2 x test rod)

• Power supply adapter + 6 NiMH rechargeable batteries,

size AA

• PC Software EuroLink PRO

• Test probe, 3 pcs (blue, black, green)

• Crocodile clip, 3 pcs (blue, black, green)

• RS232 - PS/2 cable

• USB cable

• Soft carrying neck belt

• Soft carrying bag

• Short instruction manual

• Instruction manual on CD

• Handbook on CD

• Calibration certificate

Datasheet
