Metrel MI 3116 Bifacial set Photovoltaic And Electrical Insulation Tester (1500 VDC; 40 ADC; 1500 V)

PHOTOVOLTAIC MEASUREMENTS

Voltage:

20.0 … 199.9 VDC / ±(1 % of reading + 2 digits)

200 … 1699 VDC / ±1 % of reading

Current:

0.10 … 9.99 ADC / ±(1 % of reading + 3 digits)

10.00 … 39.99 ADC / ±1 % of reading

Power:

0.2 … 199.9 W / ±(2 % of reading + 5 digits)

200 … 1999 W / ±2 % of reading

2.00 kW … 19.99 kW / ±2 % of reading

20.0 kW … 48.0 kW / ±2 % of reading

I/U Curve Max Limits: 1500 V / 40 A / 48 kW

Irradiation (A 1834):

0 … 999 W/m² / ±(4 % + 5 digits)

1.00 … 1.75 kW/m² / ±4 % of reading

Temperature (A 1833): -10.0 … 85.0 °C / ±5 digits

ELECTRICAL INSTALLATION MEASUREMENTS

Insulation Resistance (Roc-, Roc+) at 250 VDC:

0.00 … 19.99 MΩ / ±(5 % of reading + 3 digits)

20.0 … 199.9 MΩ / ±10 % of reading

Insulation Resistance (Roc-, Roc+) at 500 V, 1000 V, 1500 VDC:

0.00 … 19.99 MΩ / ±(5 % of reading + 3 digits)

20.0 … 199.9 MΩ / ±5 % of reading

200 … 999 MΩ / ±5 % of reading

Insulation Resistance (Roc): 0.00 … 999 MΩ / Calculated Value

Continuity (200 mA):

0.00 … 19.99 Ω / ±(3 % of reading + 3 digits)

20.0 … 199.9 Ω / ±5 % of reading

200 … 1999 Ω / ±10 % of reading

GENERAL DATA

MAIN UNIT

Display: 4.3" Colour TFT LCD with touch screen (480 x 272 pixels)

Power Supply: 14.4 V (4400 mAh) Li-Ion battery, non-removable

Mains Power: 100 V … 240 VAC, 50/60 Hz, 100 W

Memory: microSD card slot (up to 512 GB)

Connectivity: RS232, USB 2.0, Bluetooth v4.2, Wi-Fi 802.11 b/g/n

Protection Classification: Reinforced insulation

Degree of Protection: IP 54 (cover closed) / IP 40 (cover opened)

Weight: 6.8 kg

Dimensions (L x H x W): 420 x 180 x 330 mm

REMOTE UNIT

Display: 128 x 64 dots matrix display with backlight

Power Supply: 9 VDC (6 x 1.5 V AA batteries or external adapter)

Weight: 1 kg

Dimensions (L x H x W): 140 x 80 x 230 mm

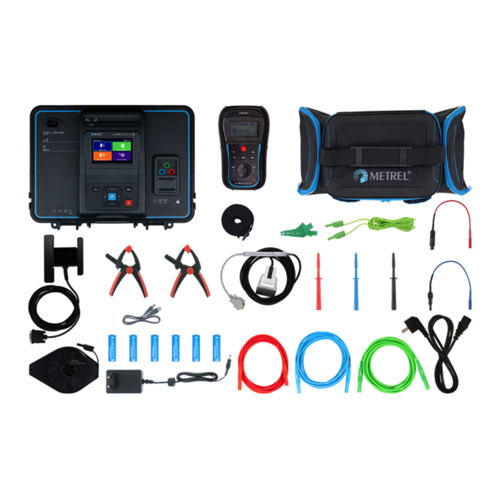

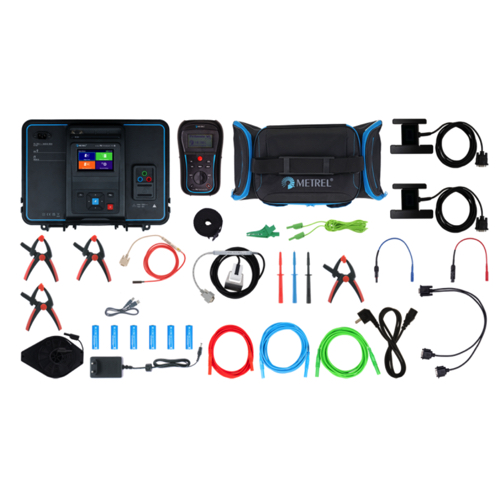

• Instrument MI 3116 PV AnalyserXA

• A 1785 PV Remote WL

• A 1833 PV temperature sensor

• A 1846 PV Reference cell V2

• 2x A 1835 Clamp for attaching accessories

• A 1840 MC4 Test lead, Blue, 1500 V

• A 1841 MC4 Test lead, Red, 1500 V

• A 1790 RED Test lead, Red, 3m, 2.5mm2

• A 1790 BLU Test lead, Blue, 3m, 2.5mm2

• A 1792 Test lead Green, 3m, 0.75mm2

• A 1509 Test lead, Black, 50m, 0.75mm2 – Reel

• A 1012 Test lead, Green, 4m, 0.75mm2

• A 1309 Crocodile clip, Green

• A 1014 Test probe, Black

• A 1015 Test probe, Blue

• A 1016 Test probe, Red

• A 1727 USB cable TypeA/B

• A 1728 Power cable, 2m, 3x0.75mm2

• A 1551 Soft padded carrying bag Size: L

• A 1548 Power supply 0.5A/12V

• A 1791 Carrying strap with tightening buckle

• S 2080 Battery set, Type AA, 2100mAh - 6pcs

• Calibration certificate for MI 3116

• Calibration certificate for A 1785

• User Manual

• SW 1201 Metrel Electrical Safety Manager (MESM)

• A 1846 PV Reference cell V2

• A 1383 Temperature probe with 3 m cable

• A 1847 Communication cable, 0.5m

• A 1835 Clamp for attaching accessories
