Metrel MI 3132 Standard set Electric Vehicle Tester (50 V ~ 1500 V; 2 A DC)

µΩ - Meter

1 A, 2 A:

0.000 mΩ ... 1.999 mΩ / 1 µΩ / ±(1 % of reading + 5 digits)

2.00 mΩ ... 19.99 mΩ / 10 µΩ / ±(0.5 % of reading + 2 digits)

20.0 mΩ ... 199.9 mΩ / 100 µΩ / ±(0.5 % of reading + 1 digit)

200 mΩ ... 499 mΩ / 1 mΩ / ±(0.5 % of reading)

1 A:

0.500 Ω ... 1.999 Ω / 1 mΩ / ±(0.5 % of reading)

100 mA, 200 mA:

0.00 mΩ ... 19.99 mΩ / 10 µΩ / ±(0.5 % of reading + 5 digits)

20.0 mΩ ... 199.9 mΩ / 100 µΩ / ±(0.5 % of reading + 2 digits)

200 mΩ ... 1999 mΩ / 1 mΩ / ±(0.5 % of reading + 1 digit)

2.00 Ω ... 19.99 Ω / 0.01 Ω / ±(0.5 % of reading + 1 digit)

20.0 Ω ... 199.9 Ω / 0.1 Ω / ±(1 % of reading + 1 digit)

200 Ω ... 1999 Ω / 1 Ω / ±(2 % of reading)

10 mA:

0.0 mΩ ... 199.9 mΩ / 100 µΩ / ±(2 % of reading + 5 digits)

200 mΩ ... 1999 mΩ / 1 mΩ / ±(2 % of reading)

2.00 Ω ... 19.99 Ω / 0.01 Ω / ±(2 % of reading)

20.0 Ω ... 199.9 Ω / 0.1 Ω / ±(2 % of reading)

200 Ω ... 1999 Ω / 1 Ω / ±(2 % of reading)

Ω - Meter

1 A, 2 A:

0.000 Ω ... 0.499 Ω / 1 mΩ / ±(0.5 % of reading + 10 digits)

1 A:

0.500 Ω ... 1.999 Ω / 1 mΩ / ±(1 % of reading)

100 mA, 200 mA:

0.000 Ω ... 1.999 Ω / 1 mΩ / ±(1 % of reading + 10 digits)

2.00 Ω ... 19.99 Ω / 10 mΩ / ±(1 % of reading)

20.0 Ω ... 199.9 Ω / 100 mΩ / ±(1 % of reading)

200 Ω ... 1999 Ω / 1 Ω / ±(2 % of reading)

10 mA:

0.00 Ω ... 19.99 Ω / 10 mΩ / ±(1 % of reading + 10 digits)

20.0 Ω ... 199.9 Ω / 100 mΩ / ±(1 % of reading)

200 Ω ... 1999 Ω / 1 Ω / ±(2 % of reading)

Continuity:

0.0 Ω ... 199.9 Ω / 0.1 Ω / ±(3 % of reading + 2 digits)

200 Ω ... 1999 Ω / 1 Ω / ±(3 % of reading)

2.00 kΩ ... 19.99 kΩ / 10 Ω / ±(5 % of reading)

20.0 kΩ ... 199.9 kΩ / 100 Ω / ±(10 % of reading)

Riso (Uiso < 250 V):

0.000 MΩ ... 1.999 MΩ / 1 kΩ / ±(3 % of reading + 3 digits)

2.00 MΩ ... 19.99 MΩ / 10 kΩ / ±(3 % of reading)

20.0 MΩ ... 199.9 MΩ / 100 kΩ / ±(5 % of reading)

Riso (Uiso ≥ 250 V):

0.000 MΩ ... 1.999 MΩ / 1 kΩ / ±(3 % of reading + 5 digits)

2.00 MΩ ... 19.99 MΩ / 10 kΩ / ±(3 % of reading)

20.0 MΩ ... 199.9 MΩ / 100 kΩ / ±(3 % of reading)

200 MΩ ... 999 MΩ / 1 MΩ / ±(5 % of reading)

1.00 GΩ ... 2.99 GΩ / 10 MΩ / ±(10 % of reading)

AC Voltage (Uac):

0.000 V ... 9.999 V / 0.001 V / ±(0.5 % of reading + 3 digits) (15 Hz ... 99 Hz)

0.000 V ... 9.999 V / 0.001 V / ±(1 % of reading + 3 digits) (100 Hz ... 399 Hz)

0.000 V ... 9.999 V / 0.001 V / ±(10 % of reading + 3 digits) (400 Hz ... 1200 Hz)

10.00 V ... 99.99 V / 0.01 V

100.0 V ... 749.9 V / 0.1 V

DC Voltage (Udc):

0.000 V ... 9.999 V / 0.001 V

10.00 V ... 99.99 V / 0.01 V / ±(0.5 % of reading + 3 digits)

100.0 V ... 999.9 V / 0.1 V

Voltage (U):

0.000 V ... 9.999 V / 0.001 V / ±(0.5 % of reading + 3 digits) (DC, 15 Hz ... 99 Hz)

0.000 V ... 9.999 V / 0.001 V / ±(1 % of reading + 3 digits) (100 Hz ... 399 Hz)

0.000 V ... 9.999 V / 0.001 V / ±(10 % of reading + 3 digits) (400 Hz ... 1200 Hz)

10.00 V ... 99.99 V / 0.01 V

100.0 V ... 999.9 V / 0.1 V

Frequency:

15.00 Hz ... 99.99 Hz / 0.01 Hz / ±(0.2 % of reading + 1 digit)

100.0 Hz ... 999.9 Hz / 0.1 Hz / ±(0.2 % of reading + 1 digit)

1.000 kHz ... 1.200 kHz / 1 Hz / ±(0.2 % of reading + 1 digit)

RISO EV R100 (Lower result):

0 ... 999 Ω/V / 1 Ω/V / ±(3 % of reading + 2 digits)

1.00 ... 4.99 kΩ/V / 10 Ω/V / ±(5 % of reading)

5.0 ... 19.9 kΩ/V / 100 Ω/V / ±(10 % of reading)

20.0 ... 49.9 kΩ/V / 100 Ω/V / ±(20 % of reading)

RISO EV R100 (Higher result):

0 ... 999 Ω/V / 1 Ω/V / Indicative

1.00 ... 4.99 kΩ/V / 10 Ω/V / Indicative

5.0 ... 19.9 kΩ/V / 100 Ω/V / Indicative

20.0 ... 49.9 kΩ/V / 100 Ω/V / Indicative

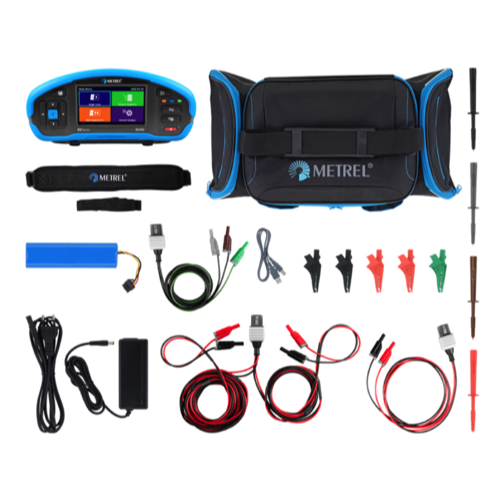

• Instrument MI 3132 EV Tester

• A 1551 Carrying bag (L)

• A 1707 Set of carrying straps

• A 1782 4-wire test lead, 2 x 2 m, 2 x 5 m

• A 1781 3-wire test lead, 3 x 1.5 m

• A 1780 2-wire test lead, 2 x 1.5 m

• A 1014 Test probe, black

• A 1016 Test probe, red

• A 1298 Test probe, brown

• A 1453 Test probe, grey

• A 1013 Crocodile clip, black, 2 pcs

• A 1064 Crocodile clip, red , 2 pcs

• A 1309 Crocodile clip, green

• A 1727 USB cable

• A 1567 4400mAh battery pack

• A 1569 Power supply adapter 12 V, 3 A

• Instruction manual (short version)

• Calibration Certificate

• SW 1201 PC SW Metrel ES Manager
