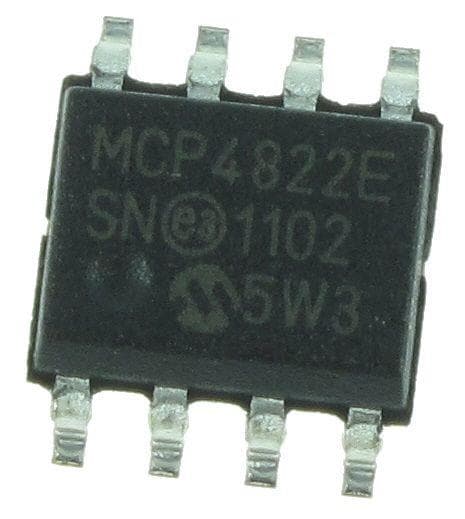

Microchip Technology MCP4822T-E/SN Low Power Dual 12-bit DAC with SPI interace and internal Vref

Name: Microchip Technology MCP4822T-E/SN Low Power Dual 12-bit DAC with SPI interace and internal Vref
Brand: Microchip Technology

ModelMCP4822T-E/SN

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Gain Error: - 0.1 %/FSR

Resolution: 12 bit

Output Type: Voltage Buffered

Architecture: Resistive String

Qualification: AEC-Q100

Settling Time: 4.5 us

Interface Type: 3-Wire, Microwire, SPI

Mounting Style: SMD/SMT

Reference Type: Internal

Reference Voltage: 2.048 V

Moisture Sensitive: Yes

Number of Channels: 2 Channel

Number of Converters: 2 Converter

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.7 V

Analog Supply Voltage: 2.7 V to 5.5 V

Digital Supply Voltage: 2.7 V to 5.5 V

Operating Supply Current: 415 uA

INL - Integral Nonlinearity: +/- 2 LSB

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: +/- 0.2 LSB
