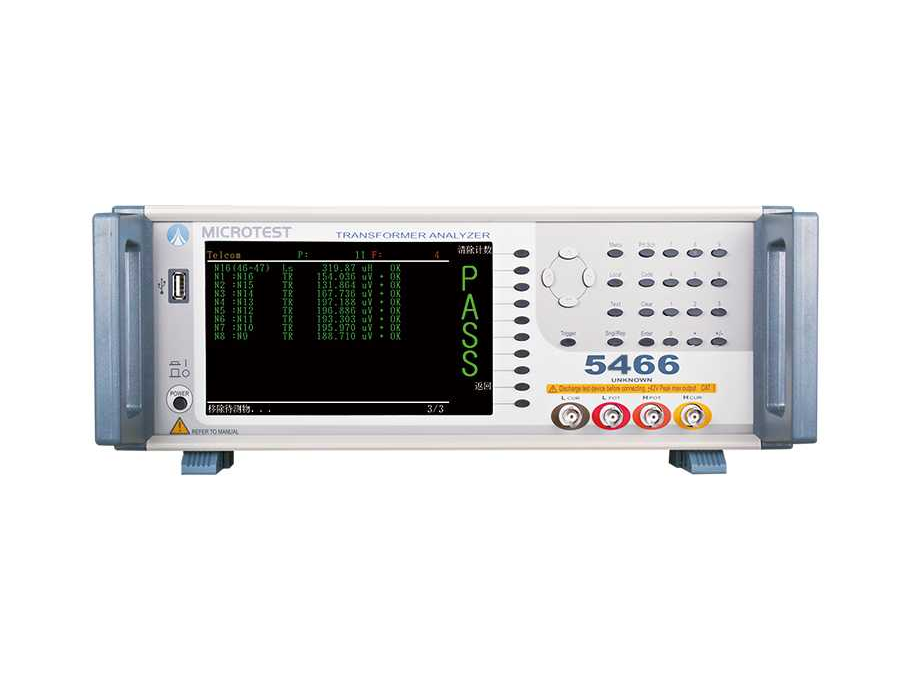

MICROTEST 5466 Transformer Tester (48 Channels; 10Hz-500kHz)

Test Channel: 48

Test Frequency: 10Hz-500kHz

Frequency Resolution: 5 digits

Basic Accuracy: ±0.1%

AC Drive Level: 10mV-2Vrms

DC Drive Level: 10mV-2V

Output Impedance: 100Ω

DC Bias Current: 100mA (F5620)

Turn: Inductance or Voltage; Test Freqeuncy：50Hz-200kHz

Test Mode: Meter Mode / List Mode

Parameters/ Rang/Basic Accuracy (AC parameter:1kHz)/ Speed

L, LK/0.1nH ~ 9999.99H/ 0.1%/ 25ms

C/ 0.00001pF ~ 999.99mF/ 0.1%/ 25ms

Q,D/ 0.00001 ~ 99999/0.0005/25ms

Z,X,R/ 0.00001Ω ~ 99.9999MΩ/ 0.1%/ 25ms

Y/ 0.01nS ~ 99.9999S/ 0.1%/ 25ms

θ/-180°~ +180°/ 0.03°/25ms

DCR/ 0.1mΩ ~ 99.999 MΩ/ 0.1%/ 25ms

Turn- ratio/ 0.1 ~ 99999.9 turns/0.5%/50ms

Pin-Short12 pairs, between pin to pin /- /15ms

System:

ESR: Series / Parallel

Calibration: Open Circuit / Short Circuit

Built-in stroage: testing files 128 sets

Operation: Auto / Manual / Remote Trigger

Power Supply: Voltage：98Vac-132Vac or 195Vac-264Vac; Frequency：47-63Hz

Power consumption: 70VA

Environment: Temperature：10℃-40℃; Humidity：10-90%RH

Dimension (W*H*D): 344x145x343 mm (W*H*D)

Weight: 9 Kg

Interface : RS-232、Handler、LAN、USB Host、EXT. I/O

Display: 800*480 Color Screen, 7" TFT
