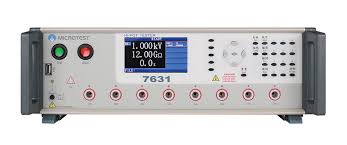

MICROTEST 7631 Precision Hipot Tester (10V ~ 5000V)

Item: Range , Resoultion , Accuracy

AC Output Voltage: 10V ~ 5000V; 1; ±(3% of setting+5V)

AC Output Frequency: 50 / 60Hz

AC Upper Threshold (mA): 0.001 ~ 30; 0.001; ±3%

AC Lower Threshold (mA): 0 ~ 30.99; 0.001; ±3%

AC Test Duration (Ramp Time): 0.1 ~ 999s; (0.1 ~ 10s); 0.1

AC Arcing Detection: 0 ~ 20

DC Output Voltage: 10V ~ 6000V; 1; ±(3% of setting+5V)

DC Upper Threshold (mA 0.001 ~ 5; 0.001; ±3%

DC Lower Threshold (mA): 0 ~ 4.99; 0.001; ±3%

DC Test Duration (Ramp Time): 0.1 ~ 999s; (0.1 ~ 10s); 0.1

DC Arcing Detection: 0 ~ 5

IR Output Voltage: 10 ~ 1000Vdc; 1; ±(3% of setting+5V)

IR Upper Threshold (MΩ): 1 ~ 12000; 1 100 ~ 500V, 1 ~ 1000MΩ(±5

IR Lower Threshold (MΩ): 0 ~ 11999 ; 500 ~ 1000V, 2 ~ 12000MΩ(±5%)

IR Test Duration (Ramp Time): 0.1 ~ 999s; 0.1

(0.01 ~ 10)

Power Supply:Voltage 90 ~ 264Vac

Frequency 50 / 60Hz

Display: 480*272, 4.3" TFT LCD

Interface:RS-232 ／ PLC Remote ／ USB Host ／ USB Device ／ EXT IO

PLC Remote Control:Test, Abort

PLC Output Signal: Pass, Fail, HV output, Testing

Flash Memory:30 sets

Operation: Manual、Remote Trigger

Environment:Temperature : 5℃ ~ 40°C Humidity : 0 ~ 80%

Dimension (W*H*D):435x145x500 mm

Weight:15 Kg

Standard Accessories

Power Cord,User Manual CD,HV Test Cable,D-Sub footswitch (F760001)

Optional Accessories

RS-232 Cable ,Test Box (F7620) ,Remote Cable ,8/16 Channels Expansion
