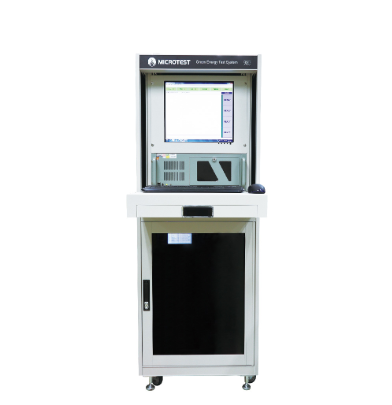

MICROTEST 980 EV Charing Connector Testing System (10V~5000V; 10V~6000V)
ManufacturerMICROTEST(View more products from this manufacturer)
Model980
OriginTaiwan
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
High voltage leakage current test: AC-HI-POT; DC-HI-POT
Voltage range: 10V ~ 5000V; 10V ~ 6000V
Short circuit (leakage current): 0.001mA ~ 31mA; 0.001mA ~ 5mA
Ramp time: 0.1 ~ 999s(0.1 ~ 10s); 0.1 ~ 999s(0.1 ~ 10s)
Maintenance time: 999s
Insulation Resistance
Voltage range: 10V ~ 1000V
IR Range: 100 ~ 500V, 1 ~ 1000MΩ(±5%) 500 ~ 1000V, 2 ~ 12000MΩ(±5%)
Ramp time: 0.1 ~ 999s(0.1 ~ 10s)
Component Test
Resistance: 0.01Ω ~ 20MΩ
Capacitance: 10pF ~ 3µF
Diode: 0 ~ 6.8V
4-wire Test
Conductance: 1mΩ ~ 52Ω
Open/Short: 2kΩ ~ 100kΩ
