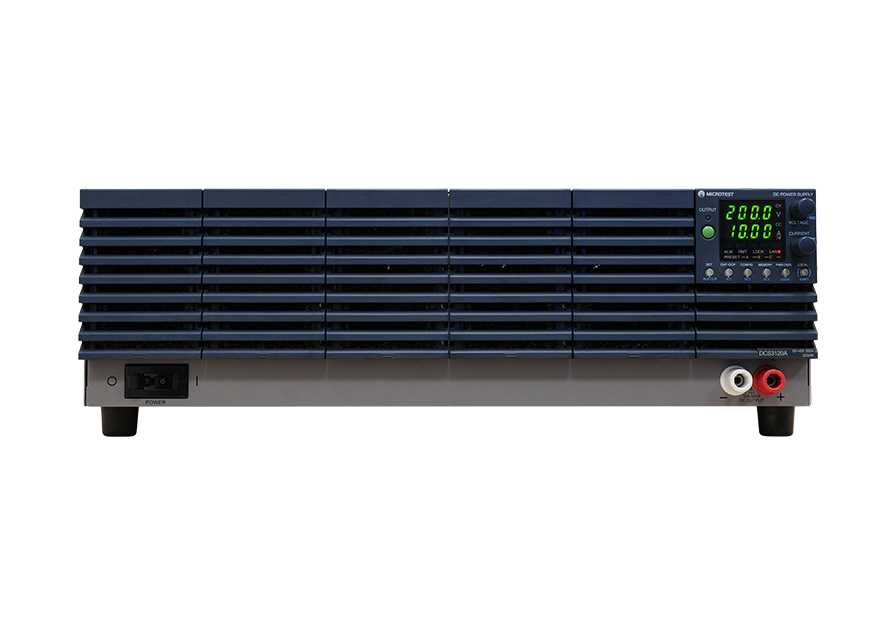

MICROTEST DCS3120A Wide-Range DC Power Supply (0V~40V; 0A~200A; 2000W)

AC input:

Input rating:100Vac~240Vac, 50Hz~60Hz, single phase

Input voltage range:85Vac~265Vac

Input frequency range:47Hz~63Hz

Current (TYP.): 100 Vac: 28A; 200 Vac: 14A

Inrush current: 125A or less

Power (MAX.): 2800VA

Power factor (TYP.): 0.99(input voltage: 100V) /0.97(input voltage: 200V)

Efficiency (TYP.): 75%

Continuous output time: 20ms or more

Output Rating:

Output voltage: 40V

Output current: 200A

Output power: 2000W

Programmable Internal Resistance (Max.): 0.200Ω

Display function:

Voltage display:

Max display: 99.99

Display accuracy: ±(0.2% of reading +5digits)

Current display:

Max display: 99.99

Display accuracy: ±(0.5% of reading +8digits)

Power display PWR DSPL light will red:

Max display: 9999

Display accuracy: Displays the product of voltage and current values
