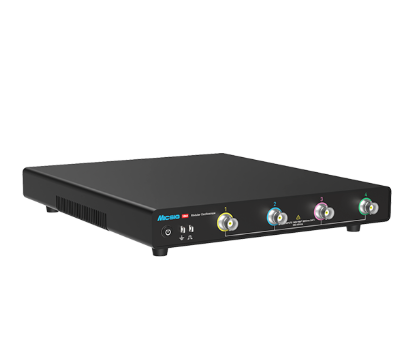

MICSIG MO34-500 High Resolution Modular Oscilloscope (500MHz, 4CH, 3GSa /s)

Bandwidth: 500MHz

Rise Time: ≤0.7ns

Analog channels: 4

Real-time sampling rate: 3GSa/s

Memory Depth: 360Mpts

Max. waveform capture rate: 230,000wfms/s

Configuration:  Basic Software

Baseline Noise ＜ 85μVrms

Vertical Resolution: 12bit

Input Impedance: 50Ω / 1MΩ

Bus decoding: RS-232/422/485/UART、CAN、CAN FD、LIN、SPI、I²C、ARINC429、1553B

Interface: USB 3.0/2.0 Host, USB Type-C, LAN、SFP+、HDMI、Trigger in/out、10MHz in/out

Trigger: Edge, Pulse width, Logic, Nth-edge, Runt, Slope, Timeout, Video, Serial bus

Dimension: 224.5*30*264.3mm（Width x Height x Depth）
