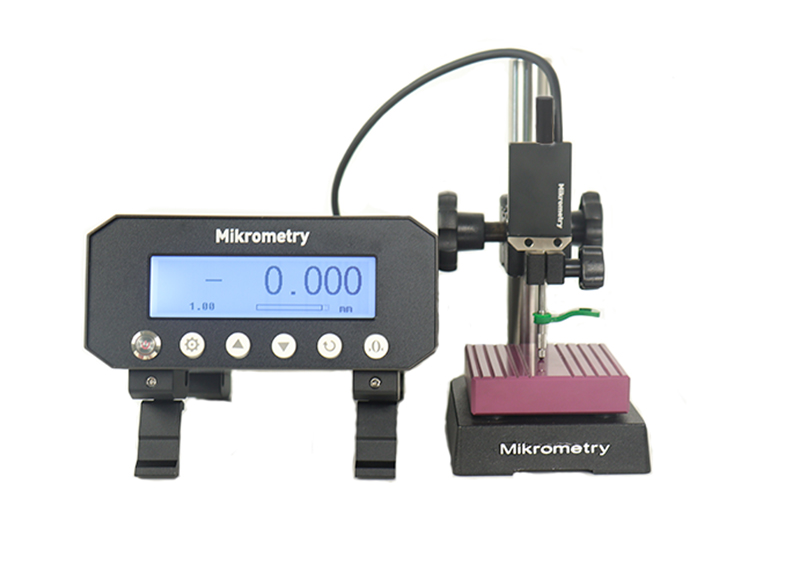

Mikrometry EHG12-1 Digital Displacement Measurement System (1µm)
ManufacturerMikrometry(View more products from this manufacturer)
ModelEHG12-1
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Measurement Range: 0-12.5mm
Least count: 1µm
Repeated accuracy: ≤2µm
Accuracy（19-20℃): ≤3µm
Measuring speed: Maximum 5000 mm/s
Measuring force: 0.7±0.2N
External output: data interface, USB, RS232
Displayer: Independent 4-inch dot matrix LCD display
Measuring pin（standard configuration): Annulus needle
Operating environment: 0-40℃
Units: mm/μm
Test board: 80*80mm ceramics(Other optional)
Standard configuration: data display instruments board Measuring pin power line handle
Power supply: input:AC100-240v 50-60Hz output:DC5V/1A
