Bandwidth: 0.1MHz~20MHz
Gain: 120dB, Pace 0.1dB, 0.6dB, 1dB, 2dB, 6dB
Wave Filter: Broadband,1M,1.25M,2.5M,5M,10M,15M,1M-5M
Sampling Rate: Hardware Sampling Rate 100MSPS, Equivalent Sampling Rate 400MSPS
Detection Mode: Full Wave, Positive Half Wave, Negative Half Wave, RF, Envelope
Detection Range: 10 Meters (Longitudinal Wave Carbon Steel),Pace 100mm, 10mm, 0.1mm
Pulse Mode: Sharp Pulse, Square Wave, Dual-square Wave
Pulse Voltage: 25V~300V, 25V Pace
Pulse Width: 0ns~500ns Continuously Adjustable,10ns Pace
Emission Damping: Strong(100Ω),Weak(1000Ω)Adjustable
Pulse Frequency: Automatic Or Manual, Automatic Range(200Hz-1KHz), Manual Range(0-10KHz)
Probe Channel: 200 Groups, Supporting Operations Such As Creating, Previewing, Deleting, Renaming, Overwriting, And Restoring
Gate Alarm: Gate A And B Alarm, Lost Wave/Incoming Wave
Gate Mode: Independent Gate A, Gate B
Measurement Mode: Peak, Front Edge, J Front Edge
Quantitative Mode: DAC Curve, AVG(DGS)Curve
Flaw Detection Standards: AWS D1.1/D1.5, NB/T 47013, GB/T 29712, GB/T 11345
Saving Content: Single Frame, Multi-frame Recording (≤ 500 Frames), Screenshot, B-scan Screenshot
Auxiliary Functions: Professional B-scan, Automatic Gain, Peak Memory, Waveform Freezing, Channel Management, Gate Alarm, Gate Expansion, Automatic Gate, Full Screen Touch, Virtual Keyboard, Color Half Span, Quick Screenshot, Flaw Reports, Channel Import/Export
Display Screen: High Definition 5.0 Inch 800×480 IPS_LCD
Probe Interface: Dual LEMO-00 C5
Output Interface: Type-C1, MINI USB
Input Interface: Type-C2(B ScanTrolley)
B-scan Imaging: Supports Up To 700 Sets Of A-scan Synthesis, With The Highest Resolution φ 0.6mm
Data Storage: 32GB SD Card
Charger: 65W_PD Fast Charging ,Standard Type-c Interface(100~240V, 50~60Hz)
Size: 183mm×113mm×45mm
Weight: 700g, Including Battery But Not Rubber Sleeve
Language: Chinese,English
Unit: Metric System, Imperial Syetem
Battery: 7.4V 8000mAh Lithium battery, 12 hours of battery life
Operation Temperature: -10°C~55°C
Resolution ratio: 40dB(Metrological performance requirements：≥26dB)
Dynamic range: 32dB(Metrological performance requirements：≥26dB)
Sensitivity margin: 50dB(Metrological performance requirements：≥42dB)
Vertical linearity: 1.8%(Metrological performance requirements：≤6%)
Horizontal linearity: 0.5%(Metrological performance requirements：≤2%)
Standard Delivery:

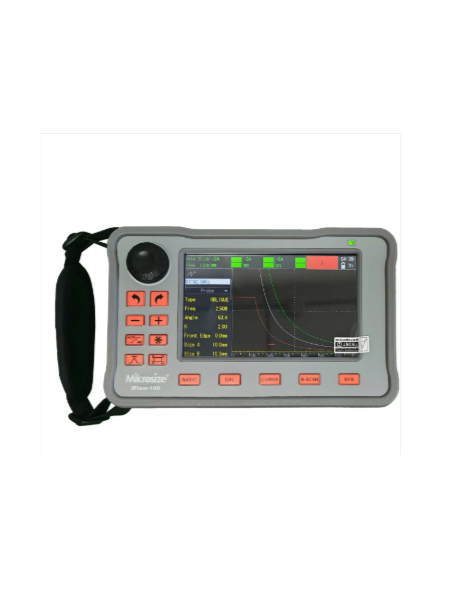

Main Unit: 1 pc
Probe (High Precision Straight Probe, Angle Probe): Each 1 pc
Probe Cable: 2 pcs
Charger: 1 pc
Power Cable: 1 pc
Sd Card(8g): 1 pc
