Filter Band: 0.2~35 MHz
Total Gain Amount: 120 dB (With 0.1dB, 1dB, 2dB, 6dB Incremental Values)
Hardware Real-time Sampling: High-resolution 10-bit AD Converter, Sampling Rate 320MHz, Waveform Highly Preserved
Detection Range: 15 meters (Steel,Longitudinal Wave),Transmission30meters(Expandable)
Sound Velocity Range: (100~20000)m/s
Dynamic Range: ≥38dB
Pulse Amplitude: 100V, 200V, 300V, 400V, 500V, Selectable In Steps, Suitable For A Wide Range Of Probes
Pulse Width: Continuously Adjustable In The Range Of (0.03~0.51)μs To Match Different Frequency Probes
Probe Impedance: 50Ω, 100Ω, 150Ω, 400Ω Selectable, To Meet Different Sensitivity And Resolution Requirements
Probe Types: Straight Probe, Inclined Probe, Dual-crystal Probe, Penetration Probe, Crawling Wave Probe, Surface Wave Probe
Repetition Rate: 10-3000Hz Adjustable
Receiving Waveform: Positive Half-wave, Negative Half-wave, Full Wave, Rf Waveform
Gate: Incoming Wave Gate, Lost Wave Gate; Single Gate, Dual Gate
Gate Reading: Single Gate And Dual Gate Reading Modes Available
Alarm: Buzzer Alarm, LED Light Alarm
Connector: BNC/LEMO Optional
Vertical Linear Error: ≤1.5%
Horizontal Linear Error: ≤0.1%
Digital Rejection: (0~80)%, No Effect On Linearity And Gain
Resolution: >40dB (5P14)
Sensitivity Margin: >66dB (Deep 200mm Ф2 Flat-Bottomed Hole)
Power Requirements: AC Mains 100-240 VAC, 50-60 Hz
Operating Temperature: -10°C to 50°C Storage Temperature -30°C to 50°C
Dimensions: 260mm×175mm×60mm
Standard Delivery

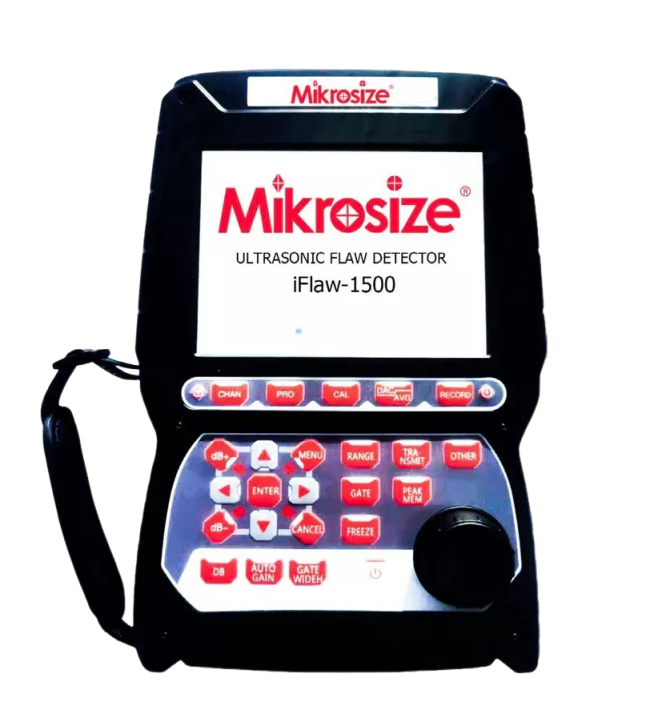

Main Unit: 1 pc
High-precision Straight Probe: 1 pc
High-precision Angle Probe: 1 pc
Probe Connection Wire: 2 pcs
9v Power Adapter: 1 pc
Ultrasonic Flaw Detector Mobile App: 1 pc
Instrument Strap: 1 pc
Optional Delivery
Standard Test Blocks: FD-TB
Other Types Of Probes: Appendix
Other Probe Cables: FD-PC
Coupling Agents: FD-CP
Bluetooth Printer: FD-BP
