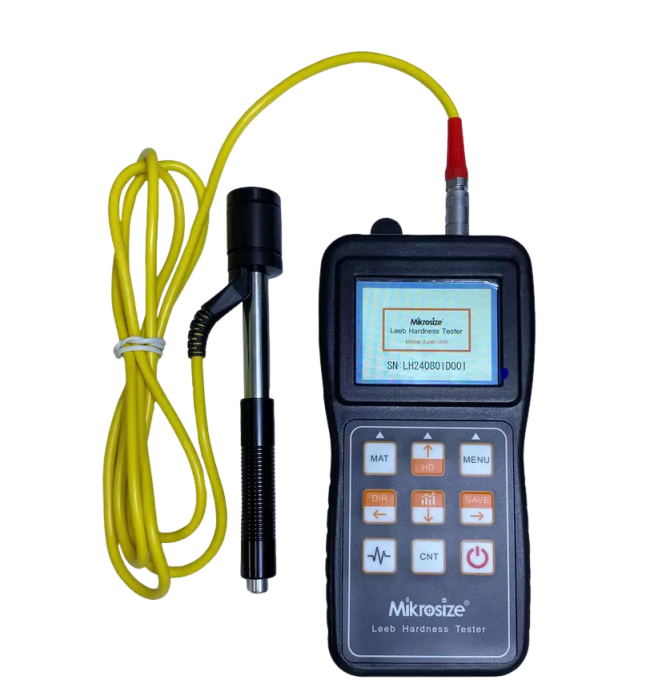

Measurement Range: HLD (170 ~ 960)
Measurement Direction: Support Vertical Downward, Oblique Downward, Horizontal, Oblique Upward And Vertical Upward
Hardness Scales: Leeb(HL), Brinell (HB), Rockwell B (HRB), Rockwell C (HRC), Vickers (HV), Shore (HS)
Standard Impact Device: Impact Device of Type D
Optional Impact Device: D/ C /DC / D+15 / DL/ E/ G
Display: Color Screen
Data Memory: Up to 100 Groups (Impact Times 32 ~ 1)
Power Supply: 3V (Two AA Size Alkaline Batteries In Series)
Interface Port: USB
Measuring Materials: Steel And Cast Steel, Alloy Tool Steel, Cast Aluminum Alloy, Gray Cast Iron, Nodular Cast Iron, Stainless Steel, Copper Zinc Alloy (Brass), Copper Tin Alloy (Bronze), Pure Copper
Hardness Scales: Leeb(HL), Brinell (HB), Rockwell B (HRB), Rockwell C (HRC), Vickers (HV), Shore (HS)
Working Time: Low Brightness For About 15 Hours;high Brightness For About 7 Hours
Dimensions: 150×76×37 mm
Weight: 245g
Working Environment:
Operating Temperature: -10°C ~ +50°
CStorage Temperature: -30°C ~ +60°C
Relative Humidity: ≤90%
No Strong Vibrations, No Intense Magnetic Fields, No Corrosive Media, And No Severe Dust In The Surrounding Area.
Standard Delivery
Main Unit: 1 pc
D Type Impact Device: 1 pc
Standard Test Block: 1 pc
Brush: 1 pc
Supporting Ring: 1 pc
AA Battery: 2 pc
Instruction Manual: 1 copy
Instrument Case: 1 pc
