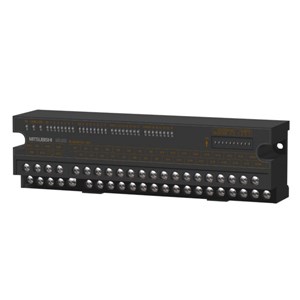

MITSUBISHI AJ65SBTB1-32D CC Link Module (32 Input, 24VDC)

Technical specification

No. of inputs:32

Isolation method:Photocoupler

Rated input voltage:24V d.c.

Rated input current:Approx. 7mA

Operating voltage range:19.2 to 26.4V d.c. (ripple ratio: within 5%)

ON voltage/ON current:14V or higher/3.5mA or higher

OFF voltage/OFF current:6V or lower/1.7mA or lower

Input resistance:Approx. 3.3kΩ

Response time:

 OFF—ON:1.5ms or lower (when 24V d.c.)

 ON—OFF:1.5ms or lower (when 24V d.c.)

Wiring method for common:32 points/common (2 points)

(terminal block 1-wire type)

Input format:Positive/negative common shared type

(sink/source shared type)

No. of occupied stations:1 station 32 points assignment (use 32 points)

I/O module power supply:

 Voltage:20.4 to 26.4V d.c. (ripple ratio: within 5%)

 Current:45mA or lower (when 24V d.c., all points ON)

Network speed:Up to 10Mbps

Network distance:Up to 1.2km
