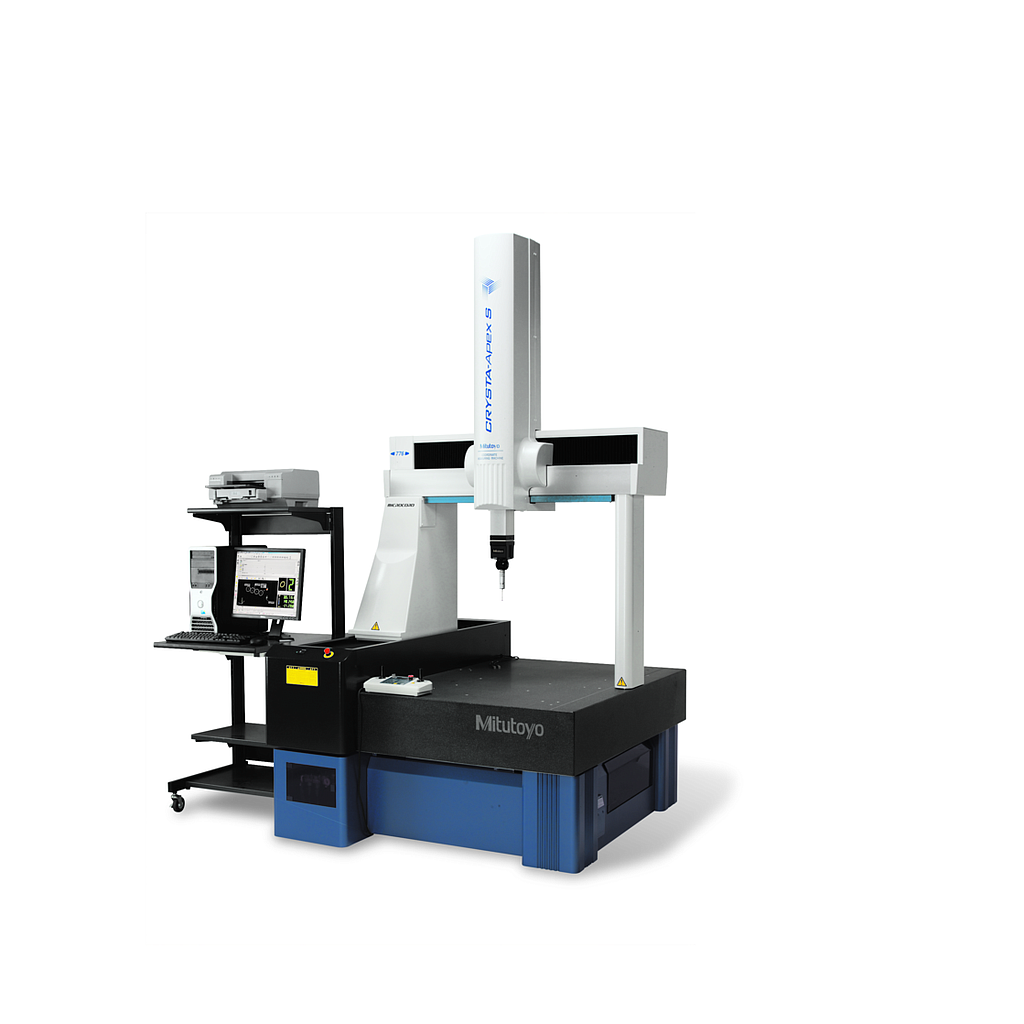

MITUTOYO CRYSTA-Apex S 776 Coordinate Measuring Machine (700mm, 700mm, 600mm)

Name: MITUTOYO CRYSTA-Apex S 776 Coordinate Measuring Machine (700mm, 700mm, 600mm)
Brand: MITUTOYO

ModelCRYSTA-Apex S 776

P/N191-252-10

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Measuring range:

X-axis 700 mm

Y-axis 700 mm

Z-axis 600mm

Resolution: 0.0001 mm (0.1 μm)

Guide method: Air bearings on each axis

Drive speed

- CNC MODE: Drive speed 8 - 300mm/s; max. speed: 519 mm/s

- J/S MODE: 0 - 80mm/s (J/S Mode: High Speed); 0 - 3mm/s (J/S Mode: Low Speed); 0.05 mm/s (J/S Mode: Fine Speed)

Max. measuring speed: 8 mm/s

Max. drive acceleration: Each axis: 1,333 mm/s2, max. combined acceleration: 2,309 mm/s2

Workpiece

- Maximum height: 800 mm

- Maximum mass: 800 kg

Mass (including the control device and installation platform): 1675 kg

Air supply

- Pressure: 0.4 MPa

- Consumption: 60 L/min under normal conditions (air source: 120 L/min)
