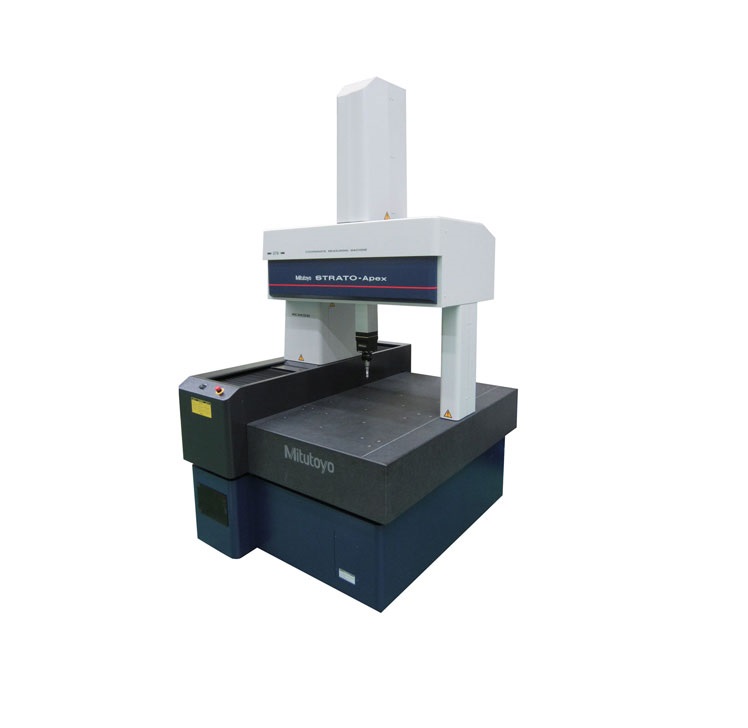

MITUTOYO STRATO-Apex 574 CNC Coordinate Measuring Machine (500mm 700mm 400mm)

Name: MITUTOYO STRATO-Apex 574 CNC Coordinate Measuring Machine (500mm 700mm 400mm)
Brand: MITUTOYO

ModelSTRATO-Apex 574

P/N355-522-01

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Type: Moving Bridge Type High Accuracy

X-axis: 19.7" (500mm)

Y-axis: 27.6" (700mm)

Z-axis: 15.7" (400mm)

Resolution: 0.0000019" (0.00005mm)

Material: Granite

Work Table Size: 26.61"x55.90" (676mm x 1420mm)

Tapped Insert: M8x1.25mm

Max Workpiece Height: 22.04" (560mm)

Max Workpiece Weight: 396lbs (180kg)

Mass (including stand and controller): 3373lbs (1530kg)

Machine Dimensions WxDxH: 50.00 x 64.96 x 94.88" (1270 x 1650 x 1270mm)

Datasheet
