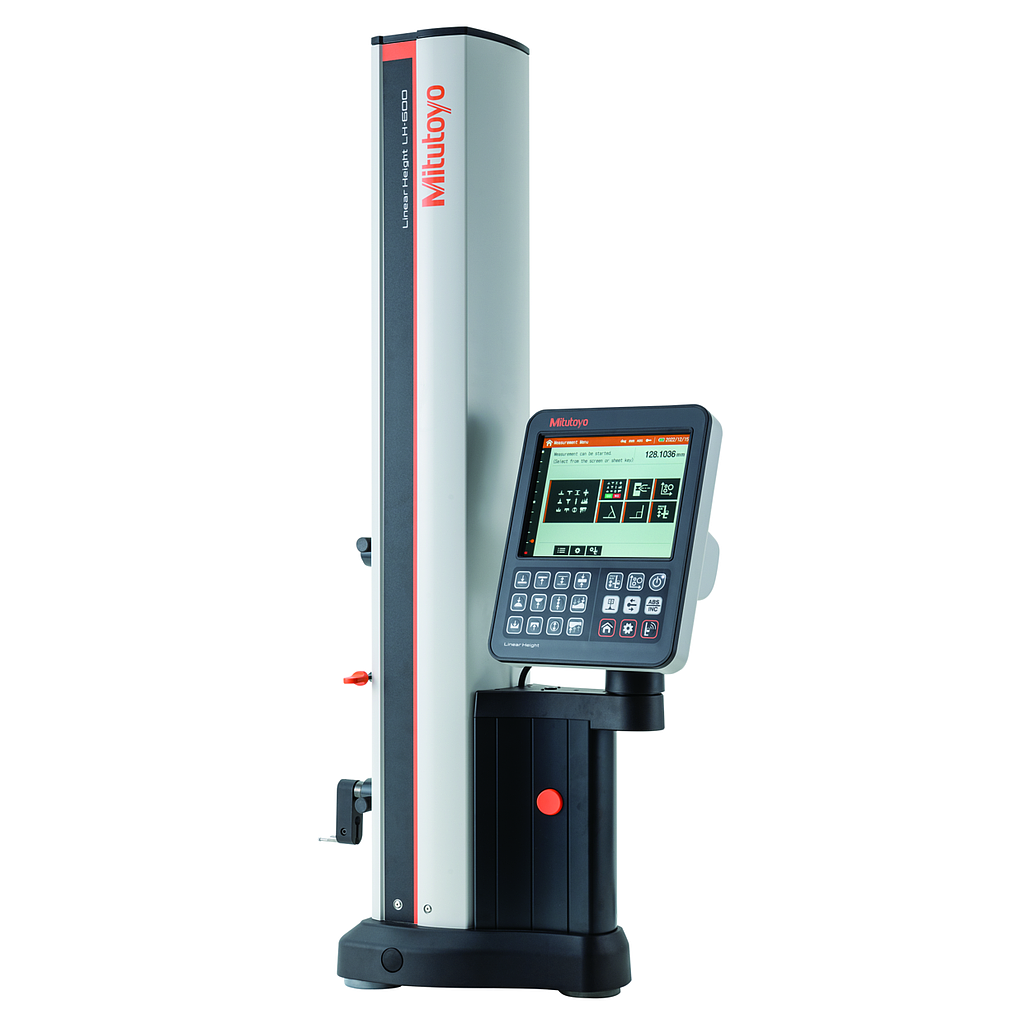

Digital/Analog:Digital
Interface: Digimatic S1 bidirectional (for wireless data transmission, Digimatic data transmission), RS-232C (for receipt printer), USB-B (for PC), UAB-A (for memory stick)
Range: 0-977 mm
Slider stroke: 600 mm
Digital step: 0.0001/ 0.001/ 0.01/ 0.1 mm (selectable), 0.000001/ 0.00001/ 0.0001/ 0.001" (selectable)
Accuracy: ±(1.1 + 0.6L/600) µm L = length (mm)
Perpendicularity: 5 µm (after compensation)
Straightness: 4 µm (mechanical)
Repeatability: (2σ) Plane: 0.4 µm
(2σ) Bore: 0.9 µm
Air floating: Full-floating (for moving), semi floating (for scanning measurement)
Remarks: Without power grip
Mass: 26.1 kg
Balancing method: Counterbalance
Drive method: Motor-driven (5, 10, 15, 20, 25, 30, 40 mm/s: 7 steps) / manual
Sliding method: Rolling bearing
Slider balance adjustment method: Manual adjustment by adding/removing auxiliary weights
Scale: Photoelectric INC encoder, STVC-20Z (8.1x10-6/K)
Display: 8.4" SVGA touch screen (800x600 dot, LED, with back lightning)
Adjustment range of display unit orientation: Tilt direction: 0-40°, swivel direction: -30-180°
Power supply: AC adapter 100-240V, 50/60Hz / battery (Ni-MH)
Battery operation time: Approx. 4 hours
Battery charging time: Appr. 3.5 h
Power consumption: Max. 49.9 W
Number of stored part programs: 50
Preventive maintenance function: Scale status notification, calibration status notification
Operating humidity: 20-80% RH (no condensation)
Airborne noise: 70dB(A)
Inch-Metric: Metric/Inch
