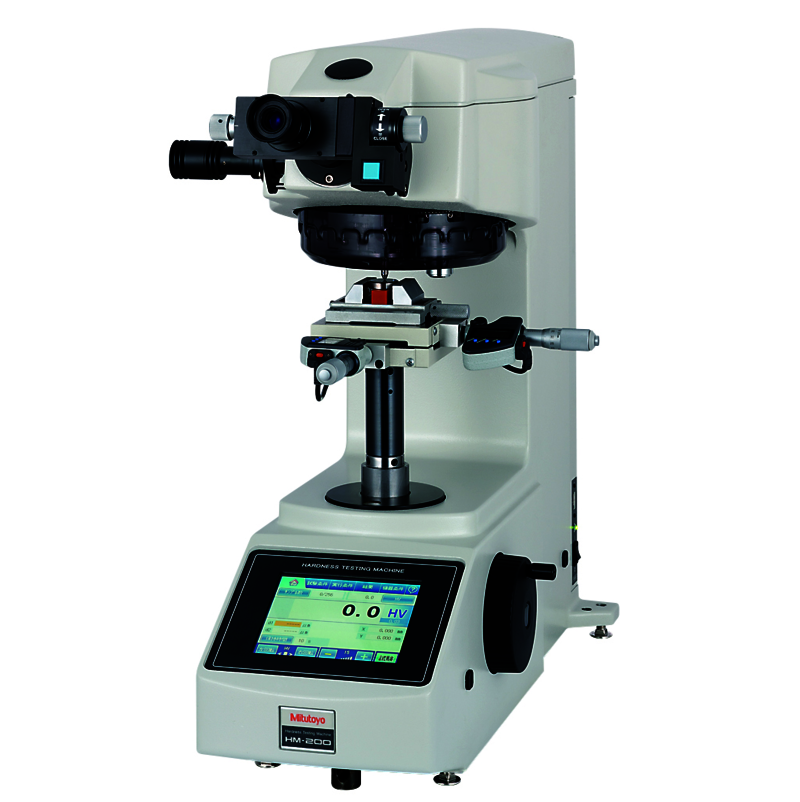

Specifications
Test force:
- mN: 98.07; 196.1; 294.2; 490.3; 980.7; 1961; 2942; 4903; 9807
- (gf) 10; 20; 30; 50; 100; 200; 300; 500; 1000
Indenter/Objective turret: Motor driven and manual operation
Data output: RS-232C, Digimatic, USB 2 interface
Standard: ISO 6507-2, ISO 4545-2, JIS B 7725
Arbitrary test force: 1 type [Default: 245.2mN (25gf)]
Output: Digimatic, serial, USB2.0 series A (for memory)*1, USB2.0 B Type (for system communication)
Resolution of diagonal length of an indentation: Objective lens less than 50X: 0.1μm (Objective lens more than 50X: 0.01μm)
Test force control: Electromagnetic generation of force (force motor) and automatic control (load, duration, unload)
Control panel: Built-in touch panel, 5.7" Color LCD (HM-210A/220A for System A), Control software (PC for System B/C/D)
External dimensions main unit mass:
- System A: 315(W)×671(D)×595(H)mm/38.5kg
Specimen dimensions:
- System A/B: height 133mm, depth 160mm (when using manual XY stage 25X25)
Included acessories:
Manual Stage unit 25x25
Vise,45MM Size 1
Installation HT - MICROVICKERS
Calibration HT - MICROVICKERS
Training Vickers Hardness Tester
TV Camera Unit
