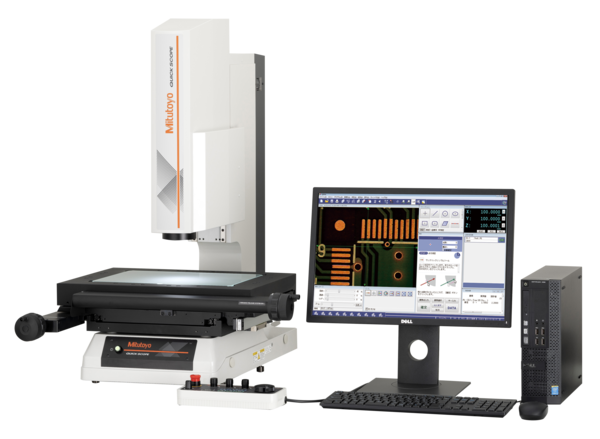

MITUTOYO QS-L2010Z/AFC Vision Measuring System (200×100×150 mm)

Name: MITUTOYO QS-L2010Z/AFC Vision Measuring System (200×100×150 mm)
Brand: MITUTOYO

ModelQS-L2010Z/AFC

P/N359-713-10

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Drive method: Auto focus equipped, X, Y axis: manual; Z axis: motor-operated

Measuring range (X×Y×Z): 200×100×150 mm

Resolution/Scale unit: 0.1 µm / Linear encoder

Vision measuring accuracy :

+ X axis, Y axis: (2.2 + 0.02L /1000) µm

+ Z axis: (4.5 + 0.006L /1000) µm

Accuracy guaranteed temperature: 20±1ºC

Observation unit: 7X zoom (8 steps) interchangeable objective lenses (1X objective 0.5X - 3.5X; 1.5X objective 0.75X - 5.25X; 2X objective 1X - 7X)

Image detection method: 3 megapixel, CMOS color camera (1/2 in)

Illumination:

+ Transmitted light: White LED

+ Co-axial light: White LED

+ Ring light: 4-quadrant white LED
