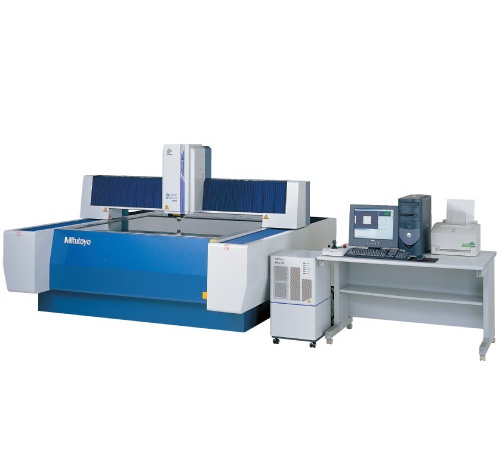

MITUTOYO QV ACCEL 1010PRO CNC Vision Measuring System (1000mm 1000mm 150mm)

Name: MITUTOYO QV ACCEL 1010PRO CNC Vision Measuring System (1000mm 1000mm 150mm)
Brand: MITUTOYO

ModelQV ACCEL 1010PRO

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Range X-Axis: 0-40in 0-1000mm

Range Y-Axis: 0-40in 0-1000mm

Range Z-Axis: 0-6in 0-150mm

Resolution: 0.1µm

High-sensitivity CCD camera: BW

Accuracy (20°C 1.0°C): E1xy-(1.5+3L/1000)µm

E1z-(3.0+4L1000)µm

E2xy-(2.5+4L/1000)µm

Max.Drive Speed: X/Y: 400/150mm/s

Illumination: Surface-LED,white; Contour-LED,White; PRL-LED,white (4 divisions)

Magnification change system: Programmable power (1x ,2x ,6x) turret

Stage glass size: 46.7x46.7in 1186x1186mm

Dimension: 75.3x82x63in 1912x2086x1603mm

Mass: 6490lbs 2950kg

Datasheet
