Absolute Measurement Range: 1.0 x 10-9 to 0.05 Torr
Digital Communication: RS485

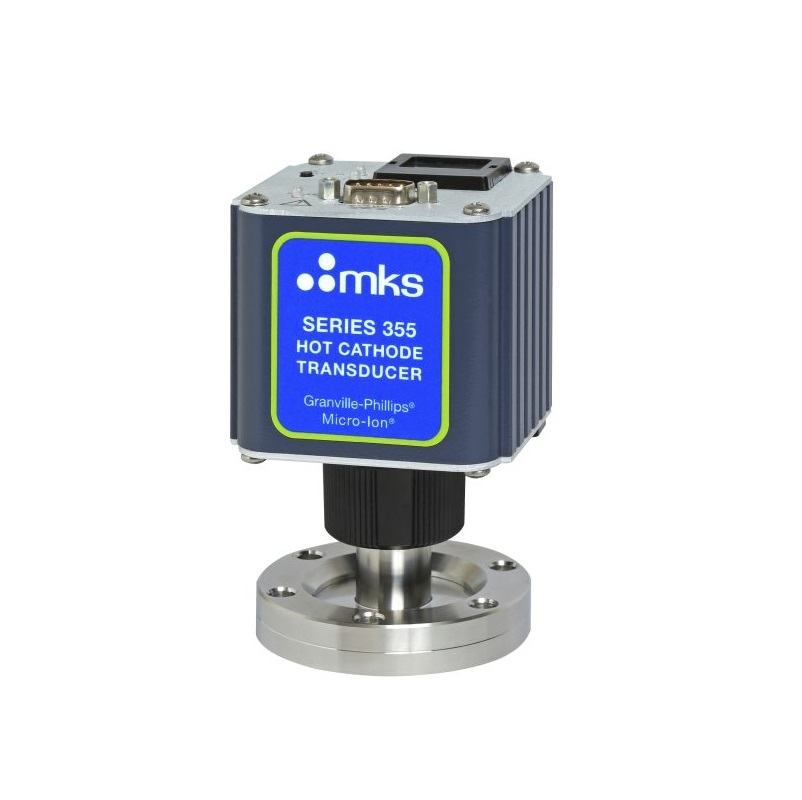

Type: Vacuum Gauge Module
Display: No
Relays: 1
Fitting Type: NW25 ISO-KF
Operating Temperature: 0 - 40°C ambient, non-condensing
Maximum Bakeout Temperature: 200°C (with electronics removed)
Storage Temperature: -40 - 70°C
Relay Contact Rating: 1 A at 30 VDC resistive load, 0.5 A at 125 VAC non-inductive
Power Requirements: 24 VDC ±15%, 12 Watts maximum
Internal Volume: 10.8 cm3 (0.66 in.3) to the port screen
Exposed Materials: 304 stainless steel, alumina, tantalum, tungsten, CuAg eutectic, Kovar
Electronic Casing and Flange: Aluminum extrusion
Compliance: CE, SEMI S2
Filament: Yttria-coated Iridium
Connectors: 9-pin type D male
Units: Torr
X-ray Limit: <3 x 10-10 Torr, <4 x 10-10 mbar, <4 x10-10 Pa
