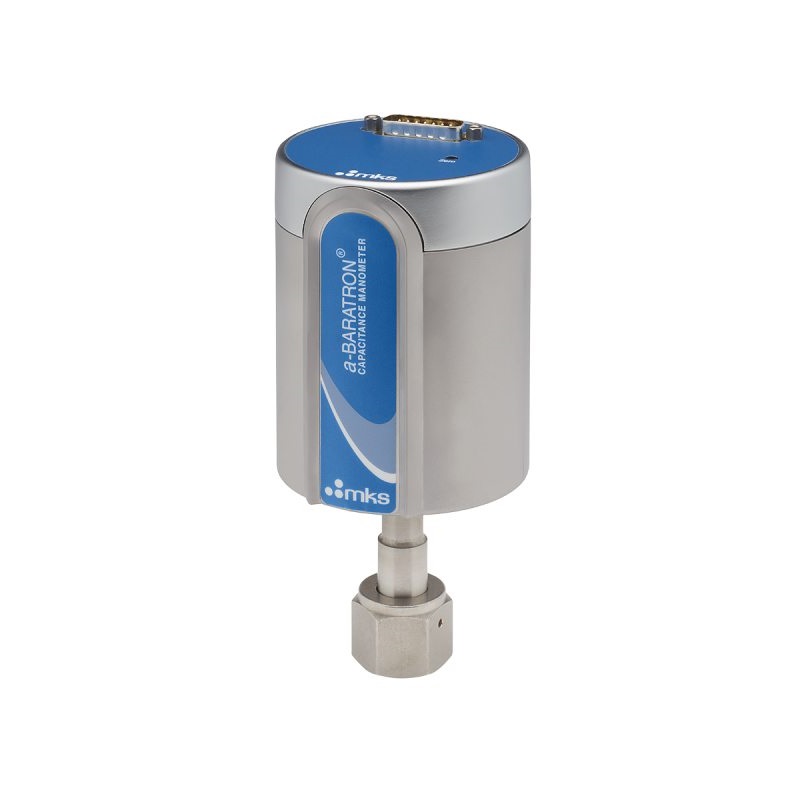

Sensor Type: Standard with Standard Tube Length
Measurement Type: Absolute
Full Scale Range: 1000 Torr
Sensor Temperature: 45°C
Fitting Type: 8 VCR female
Analog Output: 0 - 10 VDC
Electrical Connector: 15-pin D-sub male with screw locks
Accuracy: 0.10% of Reading
Resolution: 0.002% Full Scale
Time Constant: <20 ms for = 1 Torr, <40 ms for <1 Torr
Zero Temperature Coefficient: 0.002% FS/°C for 1 - 1000 Torr, 0.005% FS/°C for <1 Torr
Span Temperature Coefficient: 0.02% of Reading/°C
Operating Temperature Range: 15 - 40°C
Overpressure Limit: 45 psia
Exposed Materials: Inconel and Incoloy nickel alloys (some optional fittings are made from 300 series stainless steel)
Power Requirements: ±15 VDC
Calibration Orientation: Standard
Compliance: CE
For specific range please check the attachment below!
